Product Selection Tools

Our product selection tools are available to configure the products within each of our different air function categories. You can either access or download programs on this page or by navigating to a product and making your selection.

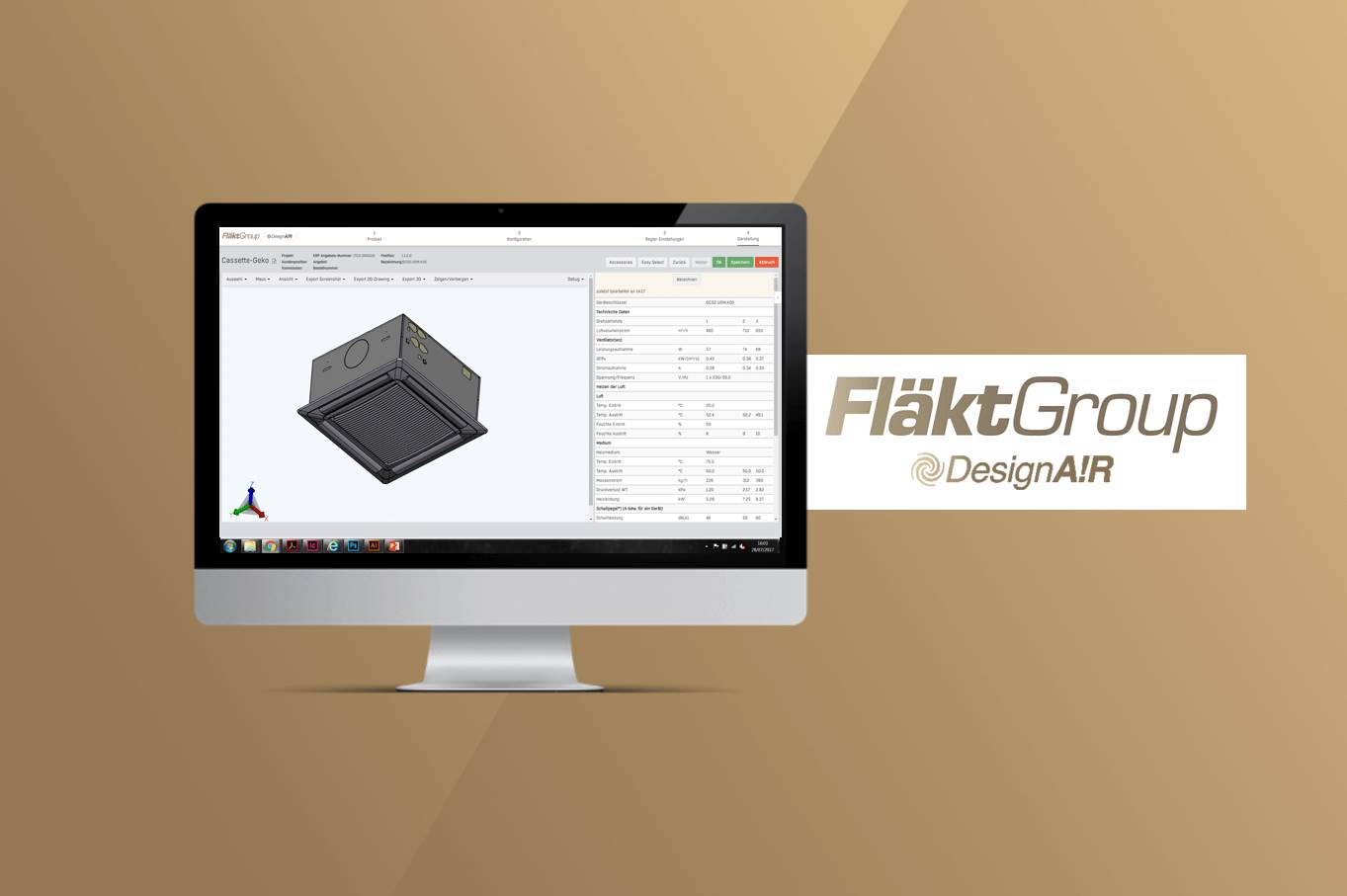

DesignA!R

FOR AIR DIFFUSION AND AIR CONDITIONING & HEATING

The brand-new DesignA!R offers selection and configuration of units for Air Diffusion and Air Conditioning & Heating. Only a few clicks enable a fast and easy configuration of units including display of modern 3D representations.

Structured layout of projects and units
EasySelection – Simple search and optimization of units based on installation conditions
Real 3D model interaction and 3D export of units including accessories
Overview calculation of different unit variants
Internationalized offer texts for all units

Go to DesignA!R

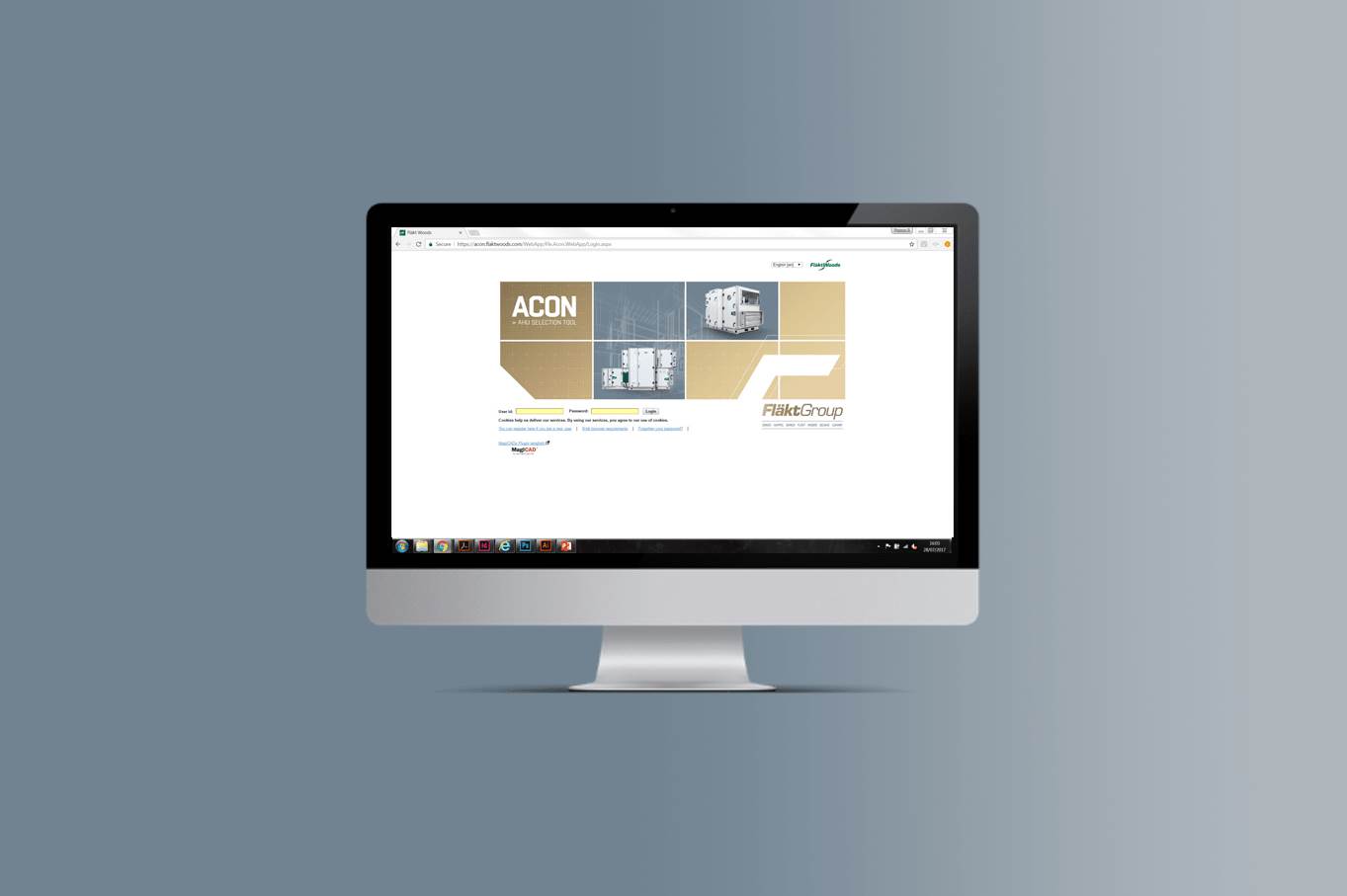

ACON

FOR AIR TREATMENT

ACON software with FläktGroup offers rapid, simple and flexible selection of Air Handling Units to specific project requirement and provides you with all the technical information you will need such as:

Energy and Life Cycle Costs calculations
Product Dimensions
Updated Documentations for the individual Air Handling Units
BIM integration and CAD export to the most frequent file types
Manage features such as type, location, heat recovery and with or without controls

To gain access to this tool in order to configure your desired Air Handling Unit from our full and flexible range please click on the link below. If you have not used Acon before you can register for an account by using the link on the landing page.

Go to ACON

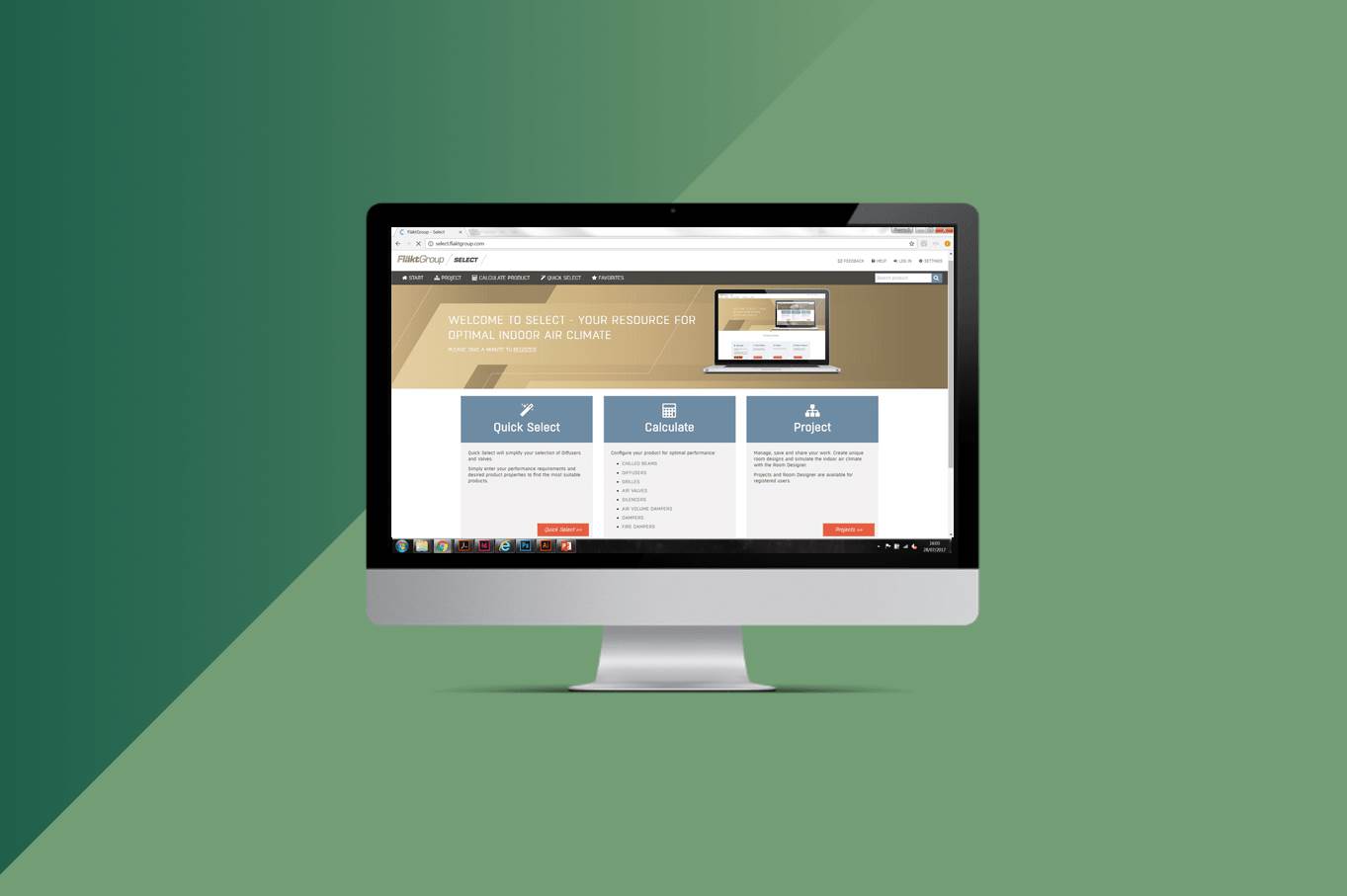

SELECT

AIR DIFFUSION, AIR DISTRIBUTION AND AIR MANAGEMENT

Our web-based selection tool, SELECT, focuses on indoor air comfort products, providing customers with great flexibility when configuring solutions via its user friendly interface. Currently this tool is available for indoor air climate products in the categories Air Diffusion, Air Distribution and Air Management.

Product Catalogue
Product Selection Wizard
Projects – structure your files and project and share with ease
Flexible 3D Room Designer
Workspace

SELECT replaced ExSelAir during 2017/18.

Go to SELECT

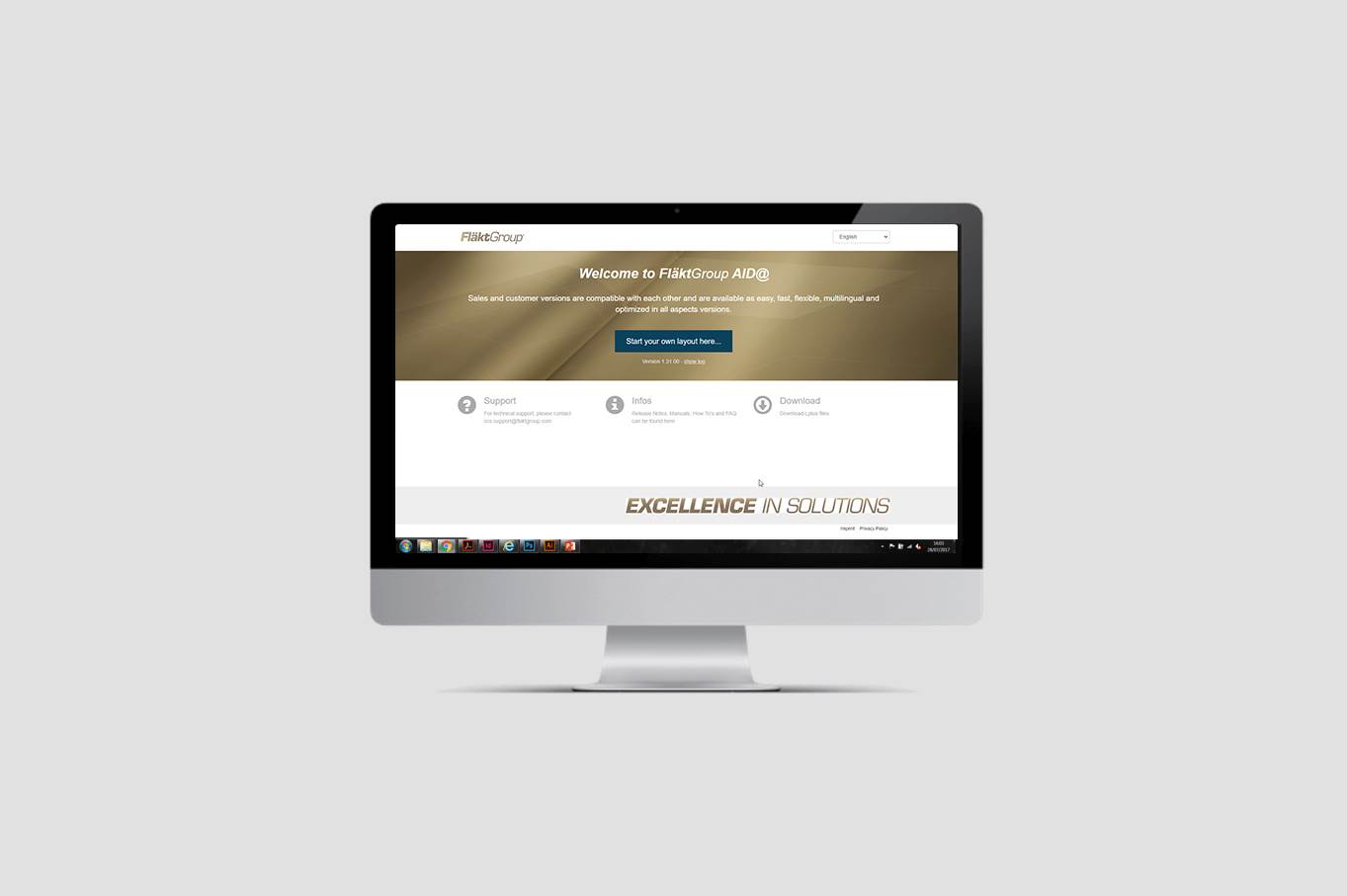

AIDA

FOR AIR CONDITIONING, DATA CENTRES, CLEAN ROOMS & SWIMMING POOL DEHUMIDIFICATION

Our AIDA selection tool from FläktGroup makes it possible to select and configure multiple products across our air functions and within key applications. These products include:

Chillers
Close Control Units
Data Centre Cooling
Cleanrooms
Swimming pool dehumidifiers
Exhaust fans
Condensing Units

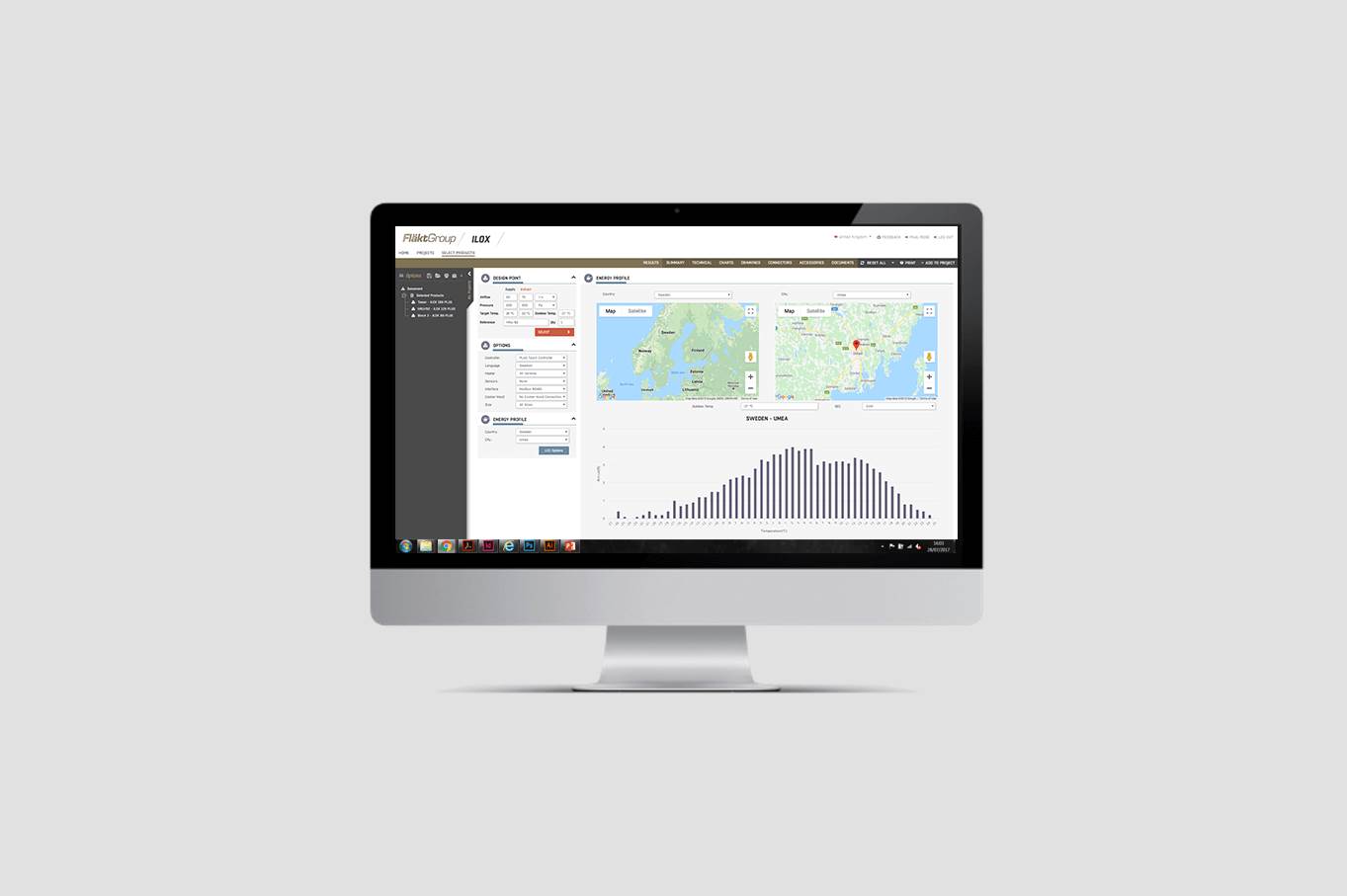

RESIDENTIAL SELECTION TOOL

FOR RESIDENTIAL AIR HANDLING UNITS, RAHU

Web Based selection tool for ILOX ventilation devices for heat recovery in modern ventilation solutions for blocks of flats and detached houses.

Product selections with comprehensive technical details
Energy recovery and LCC calculations from regional climate data
Selection of controls, sensors and accessories
Easy comparison between different unit sizes and variants

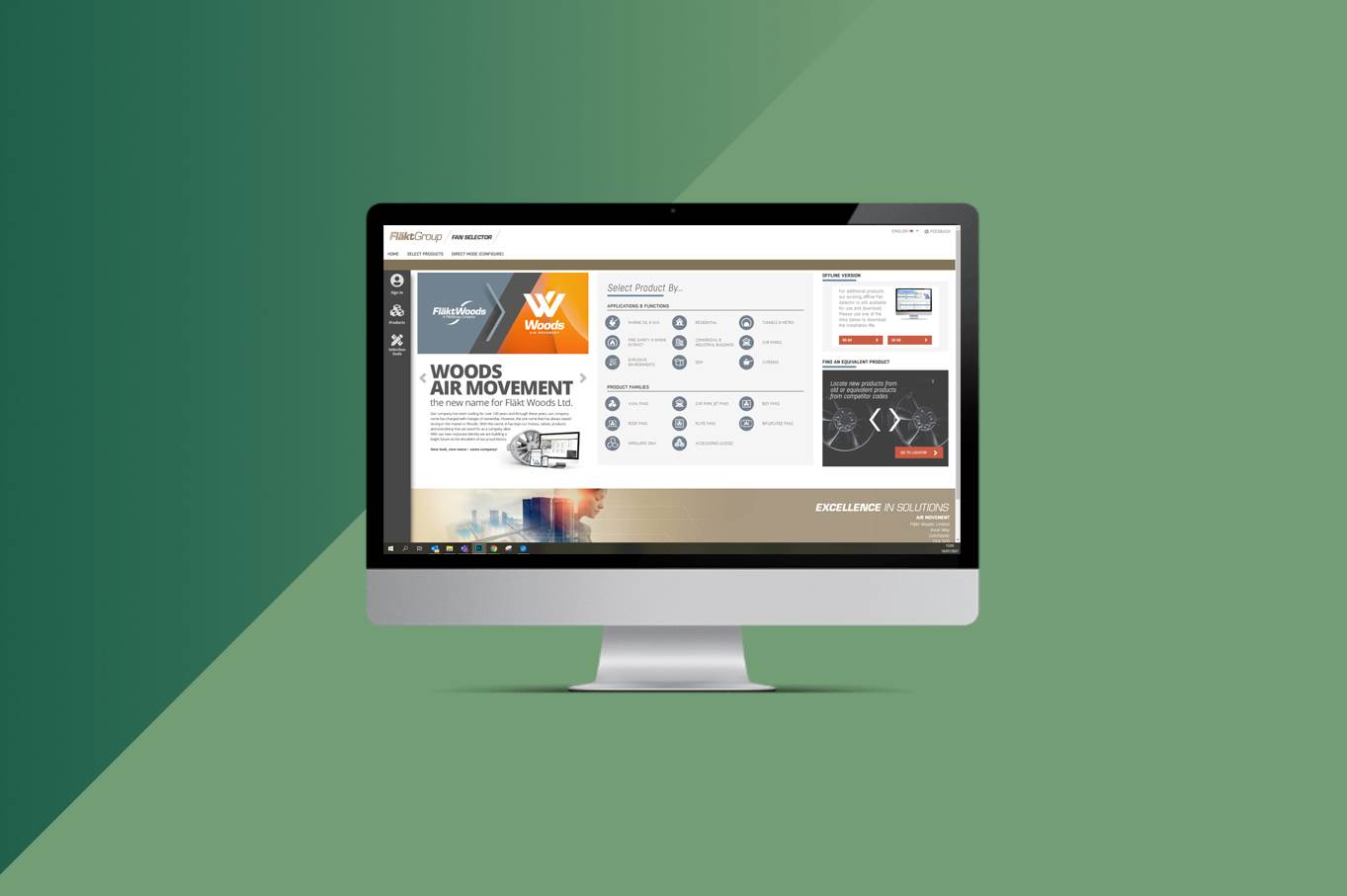

FAN SELECTOR

FOR AIR MOVEMENT

The FläktGroup Fan Selector software allows a wide range of fan related products to be selected and configured from axial and centrifugal fans to box and HRU products.

Aerodynamic duty based selections with comprehensive technical details
Product configuration & performance modelling
Full range of controls and accessories
Operating energy profiling and cost calculations
BIM & REVIT integration

Go to Web Version

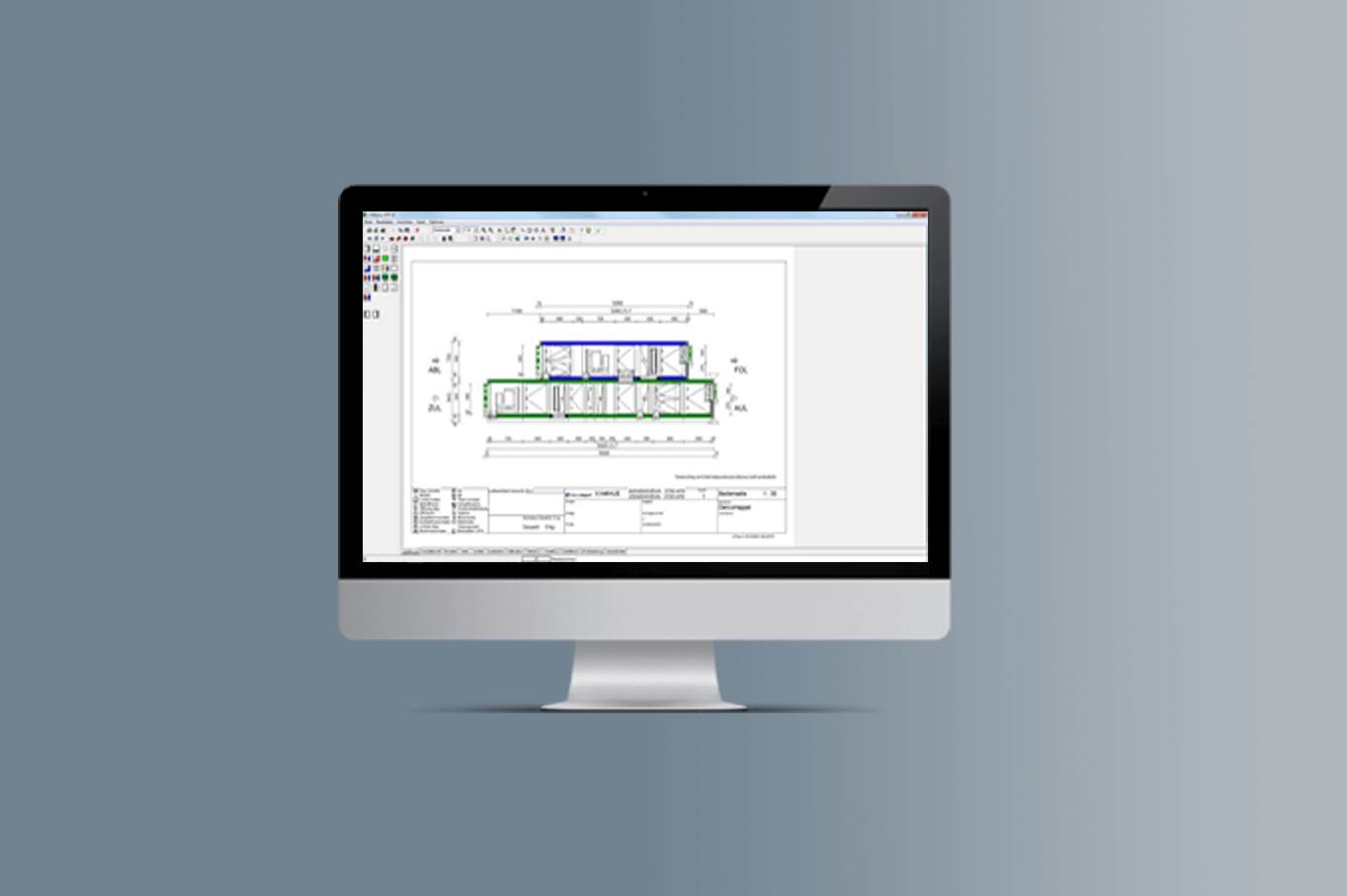

Lplus

Please click on following link in order to have access to the latest version of our selection programme for air handling units. Take care to follow the instructions of the installation. If you have any question, please contact your local sales contact.

Download here

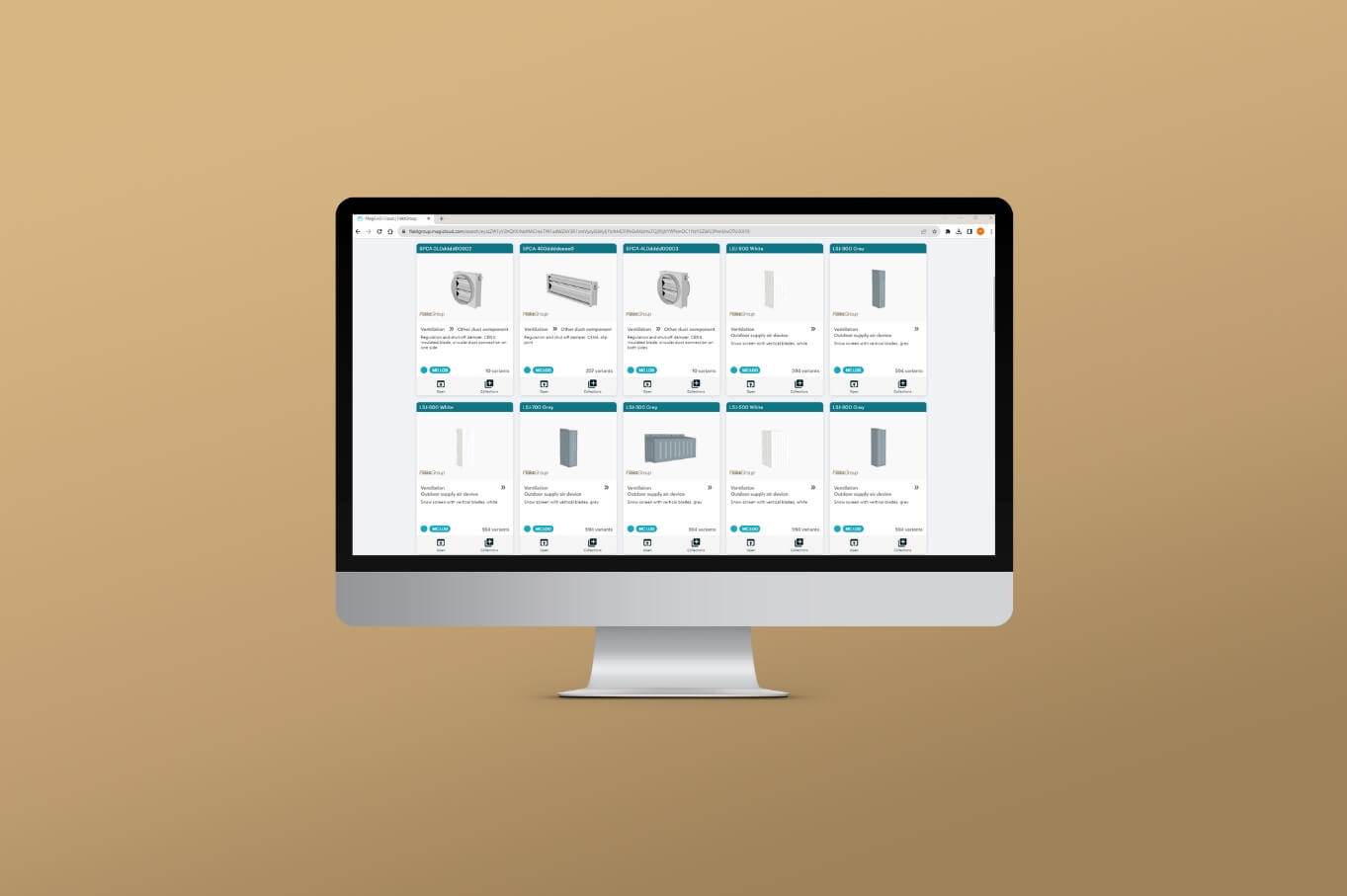

BIM PLUGINS FOR MAGICAD AND REVIT

FläktGroup offers plugins for MagiCAD and Revit that enables users to import BIM models for units configured in our selection tools directly from within MagiCAD and Revit. The product families currently covered by the plugins are Air terminal devices, Chilled beams and Air handling units.

There is also a new plugin that enables the user to download BIM objects from the online BIM platform MagiCloud and insert the objects directly into native Revit projects in native Revit RFA format.

Using these plugins will speed up the creation of BIM models and make the process easier and more accurate. The Plugins are available for all MagiCAD and Revit users worldwide free of charge.

Download the FläktGroup plugins

E-CAD

e-Cad is an application that is used to import FläktGroup's air handling units into AutoCAD drawings or to export DXF files from Acon

e-CAD download

CENTRIWARE

Download the centriware fan selection program here.

Download

ECONOVENT INSIDE

Download the software for rotor selections here.

Please contact your sales contact for serial number to enter after installation.
