eQ Prime Air Handling Unit

Energy efficiency and flexibility straight out of the box.

eQ PRIME® S/T

All our air handling expertise packaged and ready to deliver a better climate both inside and outside your buildings.



eQ Prime is the straightforward choice to achieve an excellent indoor climate at minimised costs, both initially and longterm. We have designed the Air Handling Unit to acheive high energy efficiency both through carefully selected energy saving components and to optimise the overall system efficiency.



Flexibility is standard, the unit comes in two versions – eQ Prime S with side connections and eQ Prime T with all connections at the top.

AIR FLOW RANGES

eQ Prime S: 720–21.600 m3/h (0.2–6 m³/s)
Available in 8 sizes





eQ Prime T: 720–9.000 m3/h (0.2–2.5 m³/s)
Available in 4 sizes

QUICK FACTS

Compact design

  • Supply and exhaust air in a combined casing
  • Meets VDI 6022 standard
  • Available in outdoor version



High efficiency energy recovery options:

  • Heat Recovery Wheel (Regoterm 270 Premium)
  • Plate Heat Exchanger (Recuterm Counterflow)
  • Optional Integrated Heat Pump (ReCooler HP)



High efficiency fans

  • Bluefin energy efficient composite impeller
  • EC Motors (IE5) – maximum system efficiency and low sound levels



Controls and monitoring

  • ISYteq 4.0 integrated controls
  • CLOUD for ISYteq connection
  • BMS connection

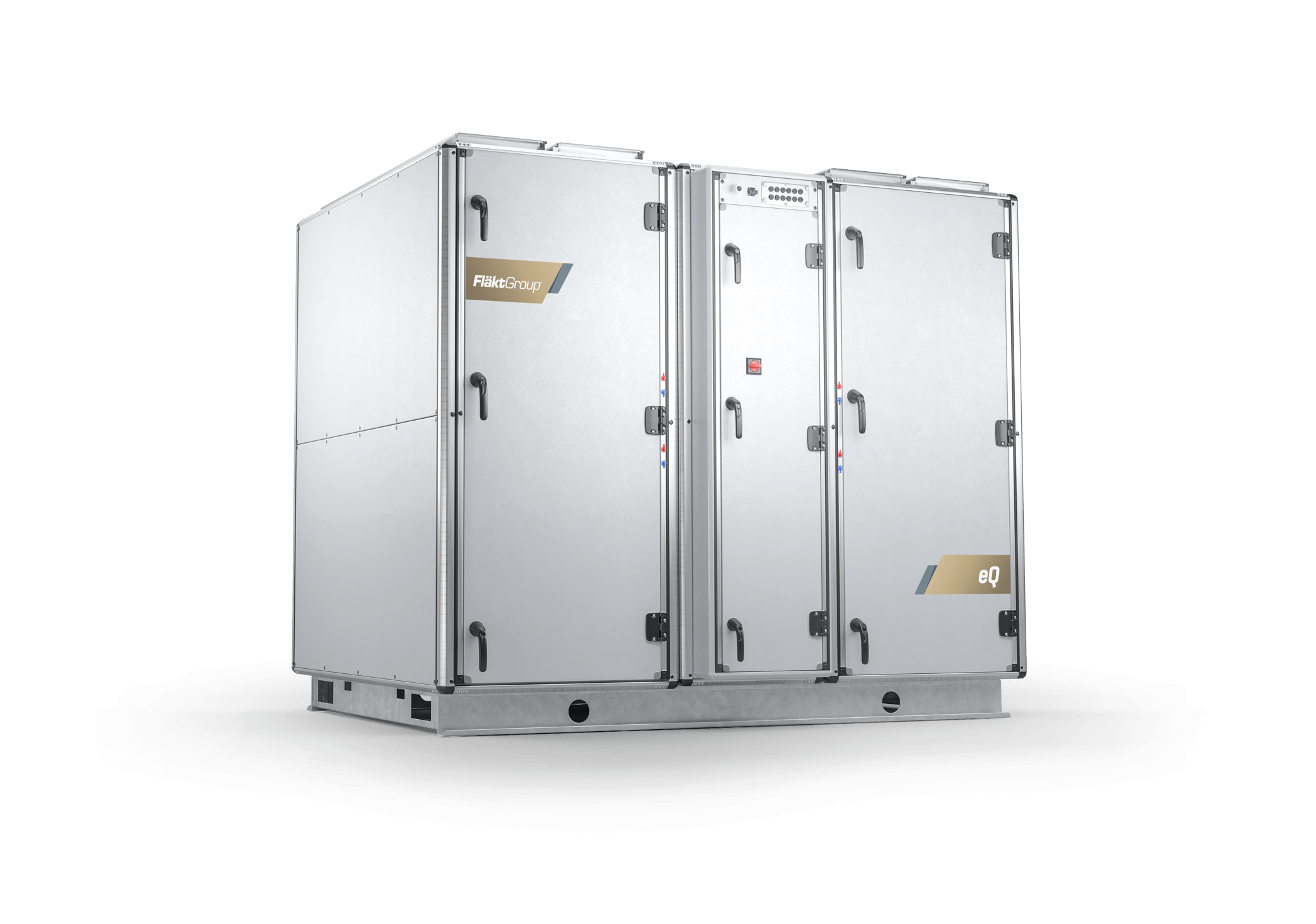

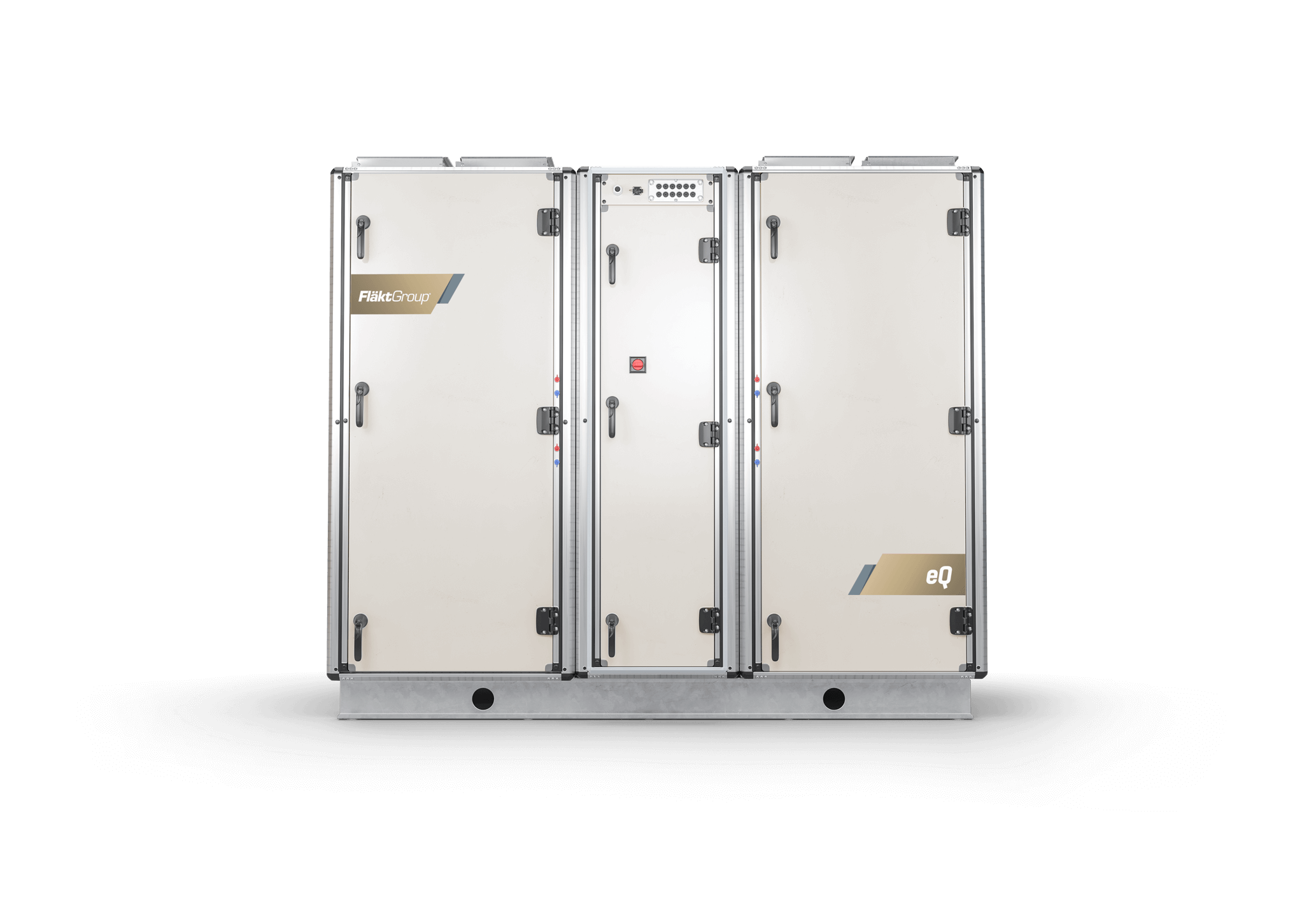

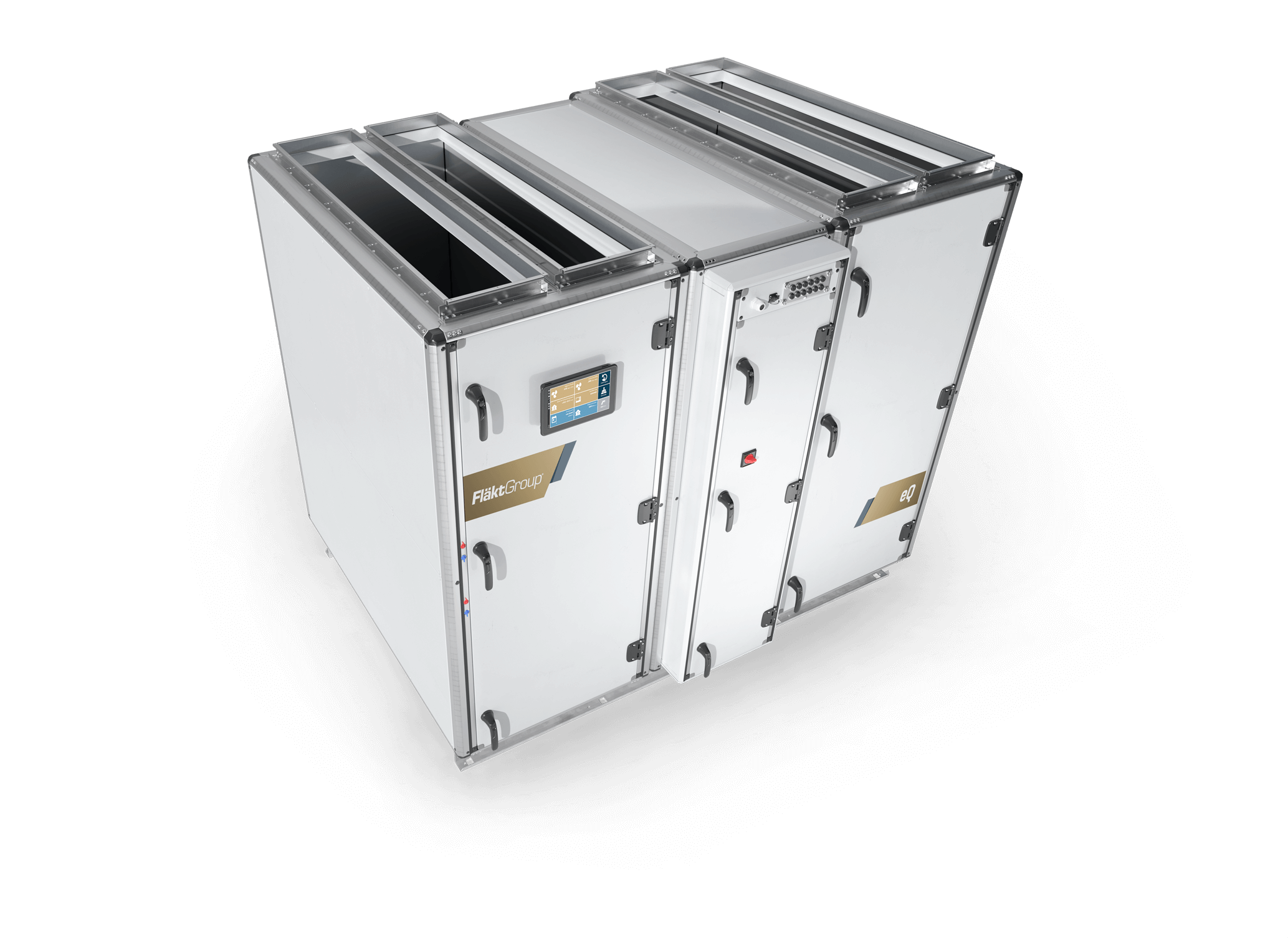

eQ Prime Top

Go to Product

eQ Prime Top

Go to Product

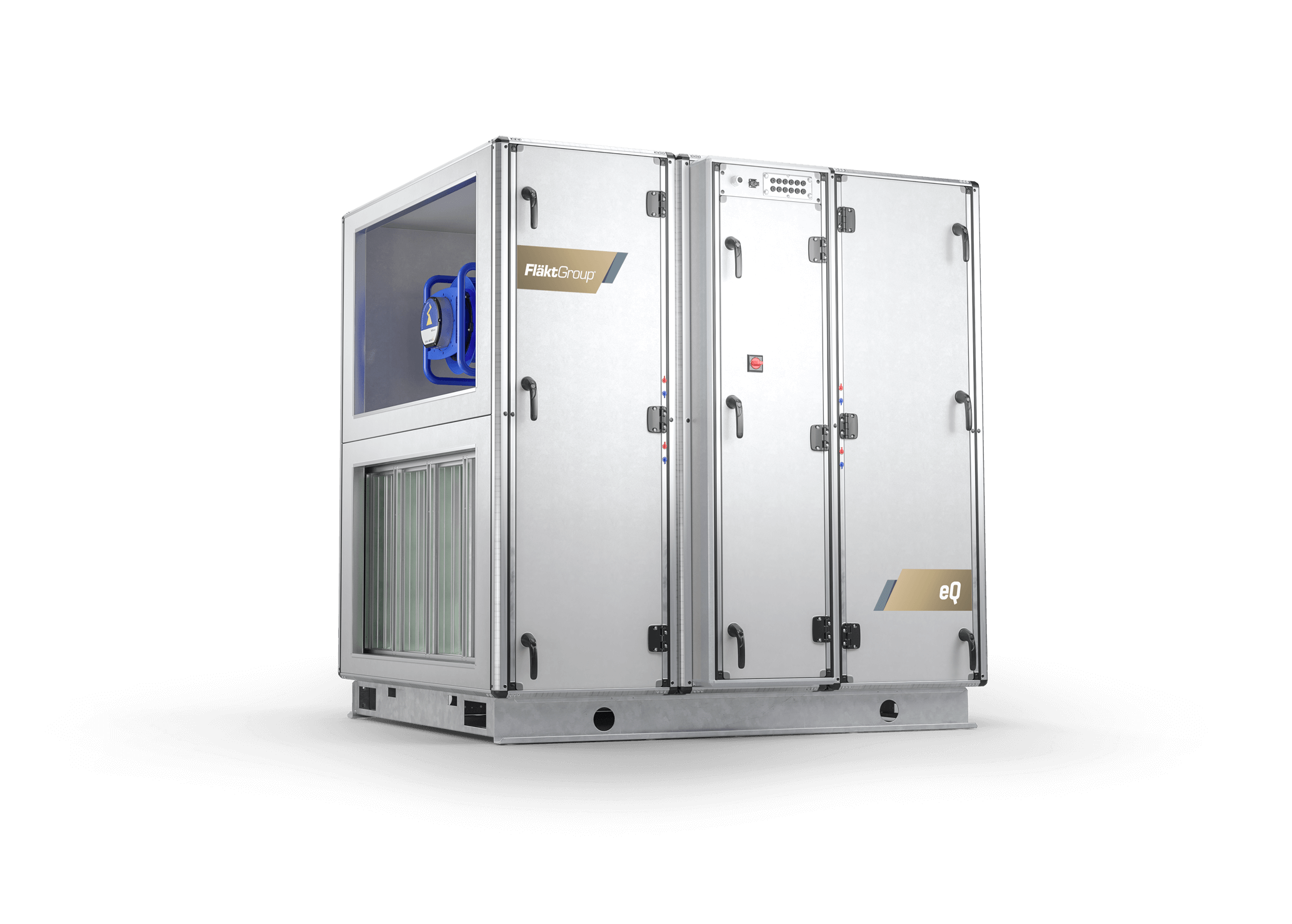

eQ Prime Side

Go to Product

eQ Prime Side

Go to Product

The Benefits

OPTIMISED LIFE CYCLE COST

eQ Prime is designed for top energy efficiency and a long life-span with low installation, running and maintenance costs.

INTEGRATED CONTROLS

Optimised performance and efficiency with factory-fitted controls. Easy to use interface and connectivity with BMS systems and cloud connected remote control.

FLEXIBILITY AS STANDARD

Easy to select and calculate in ACON to provide a perfect fit for a wide range of applications. Energy recovery options include Heat Recovery Wheel, Counterflow Plate Heat Exchanger and ReCooler Heat Pump.

OPTIONAL PAINTED PANELS

The unit can be supplied in AluZinc (standard), white painted panels or as an outdoor version for a perfect fit for every project.

EASY INSTALLATION

Designed to keep installation and commissioning to a minimum. Delivered “ready for use” with minimal assembly and wiring required on-site. Available in side and top connected versions.

HYGIENIC DESIGN

eQ Prime S/T meet the VDI 6022 hygiene standard. The units are also approved for T2/TB2.

ENERGY EFFICIENCY – THE TRUE ESSENCE OF OUR SOLUTIONS

All of FläktGroup’s research, development and testing activities are singularly focused to provide our customers with the best and most efficient solutions possible to their ventilation and indoor climate challenges.



From new and innovative products, smart component choices and manufacturing processes to advanced controls, minimised running cost and easy maintenance – we always strive for improvement and to deliver the best for your long-term economy and our environment.

ENERGY EFFICIENCY – THE TRUE ESSENCE OF OUR SOLUTIONS

All of FläktGroup’s research, development and testing activities are singularly focused to provide our customers with the best and most efficient solutions possible to their ventilation and indoor climate challenges.



From new and innovative products, smart component choices and manufacturing processes to advanced controls, minimised running cost and easy maintenance – we always strive for improvement and to deliver the best for your long-term economy and our environment.

Use less – get more!

Packed with energy-efficient components and smart technology

REGOTERM® /REGASORP

Heat Recovery Wheels from FläktGroup offer high levels of heating and cooling recovery at low pressure drops. Our Heat Recovery Wheels come with different efficiency variants allowing true optimisation according to climate zone and supply air temperature needs.



  • Up to 90% temperature efficiency
  • Regoterm 270 Premium for optimised ratio between heat recovery and pressure drop
  • RegAsorp Sorption Wheel for up to 90% humidity transfer and efficient cooling recovery

Visit Regoterm & Regasorp

EC MOTORS

The Air Handling Units are supplied with fans equipped with IE5 EC-motors. EC motors are used in all eQ Prime S/T units to achieve a short footprint of the unit to maximise the use of valuable floor space.



  • EC Blue motor technology for maximum system efficiency
  • Excellent sound performance - low noise level

RECUTERM®

Recuterm is our Counterflow Plate Heat Exchanger for high temperature efficiency ~85%. Recuterm Counterflow is ideal for central Air Handling Units in residential buildings where there is a need to consider risk of odour transfer. Recuterm AFP (Advanced Frost Protection) demand based frost protection offers reliable operation and the highest total energy efficiency in cold climates.



  • Heat transfer efficiency up to 85%
  • Recuterm Advanced Frost Protection
  • Splittable for entry into narrow building openings

Visit Recuterm

CONTROLS

Advanced built-in controls that enables a comfortable indoor climate with the highest energy efficiency. Experience-based operating modes designed for optimum performance in a wide range of applications. Simplifying both planning, installation and operation.



  • Developed to maximise component output
  • Full connectivity for remote and system control
  • Quick and simple installation
  • Modbus and BacNet always available

ReCOOLER® HP

ReCooler HP is the combination of a reversible Heat Pump unit and a Heat Recovery Wheel in one unit – bringing true benefits from design to operations. eQ Prime S/T with ReCooler HP is a complete plug & play Air Handling Unit for ventilation, heating and cooling, where everything is included and factory tested.



  • High performance and comfort with low running costs
  • Heat pump mode (heating and cooling)
  • Quick and easy installation


This product contains fluorinated greenhouse gas, R410A, with a GWP-factor of 2088. Refrigerant quantity: 3.8–11.8 kg, corresponding to 7.9–24.6 tonnes of CO2 equivalent per circuit.

Visit ReCooler HP

FläktGroup eQ Prime S/T Air Handling Units meets the highest demands. Energy and casing performance have been thoroughly tested and verified by Eurovent.

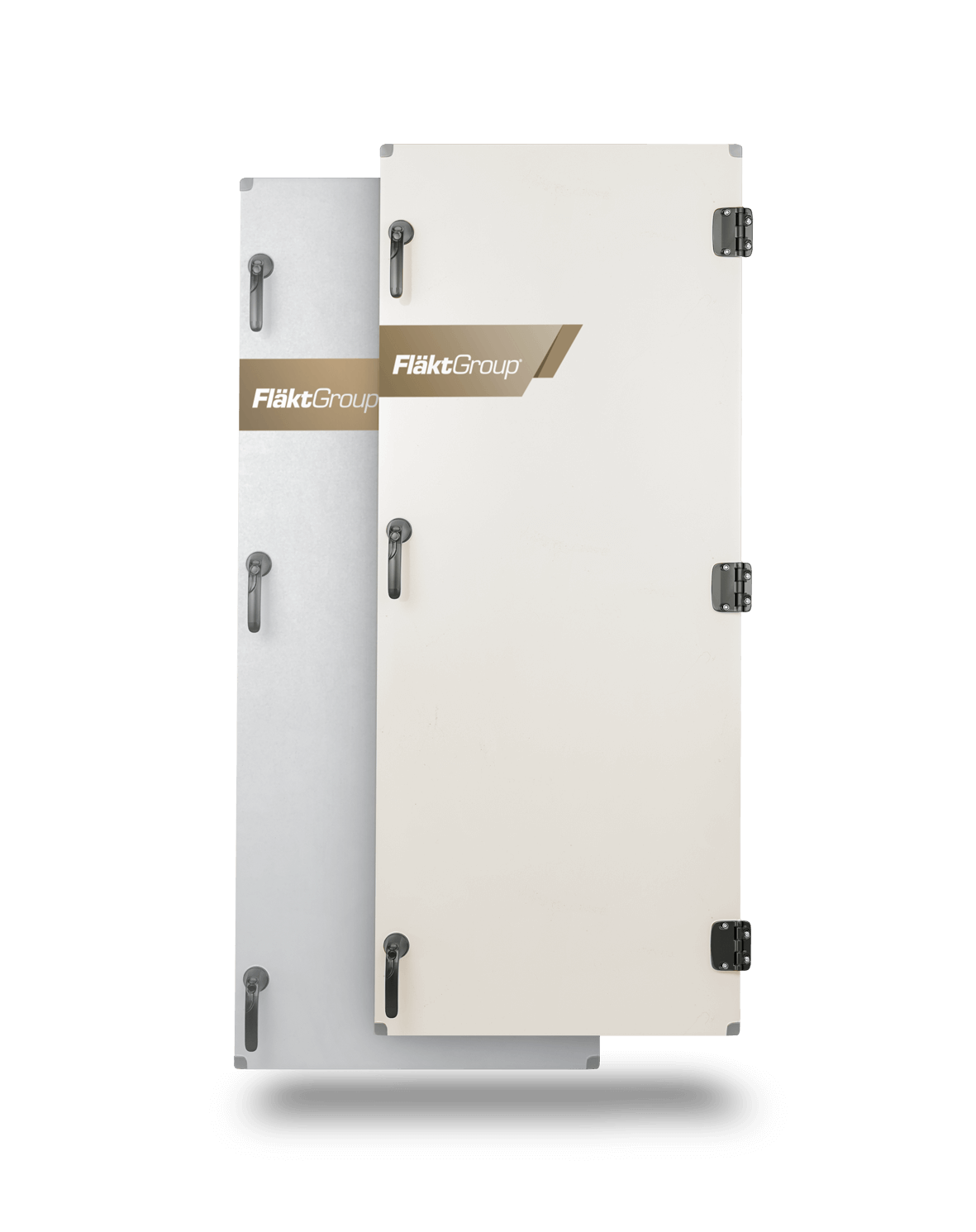

eQ Prime S/T can be supplied with white painted or AluZink panels.

Controls

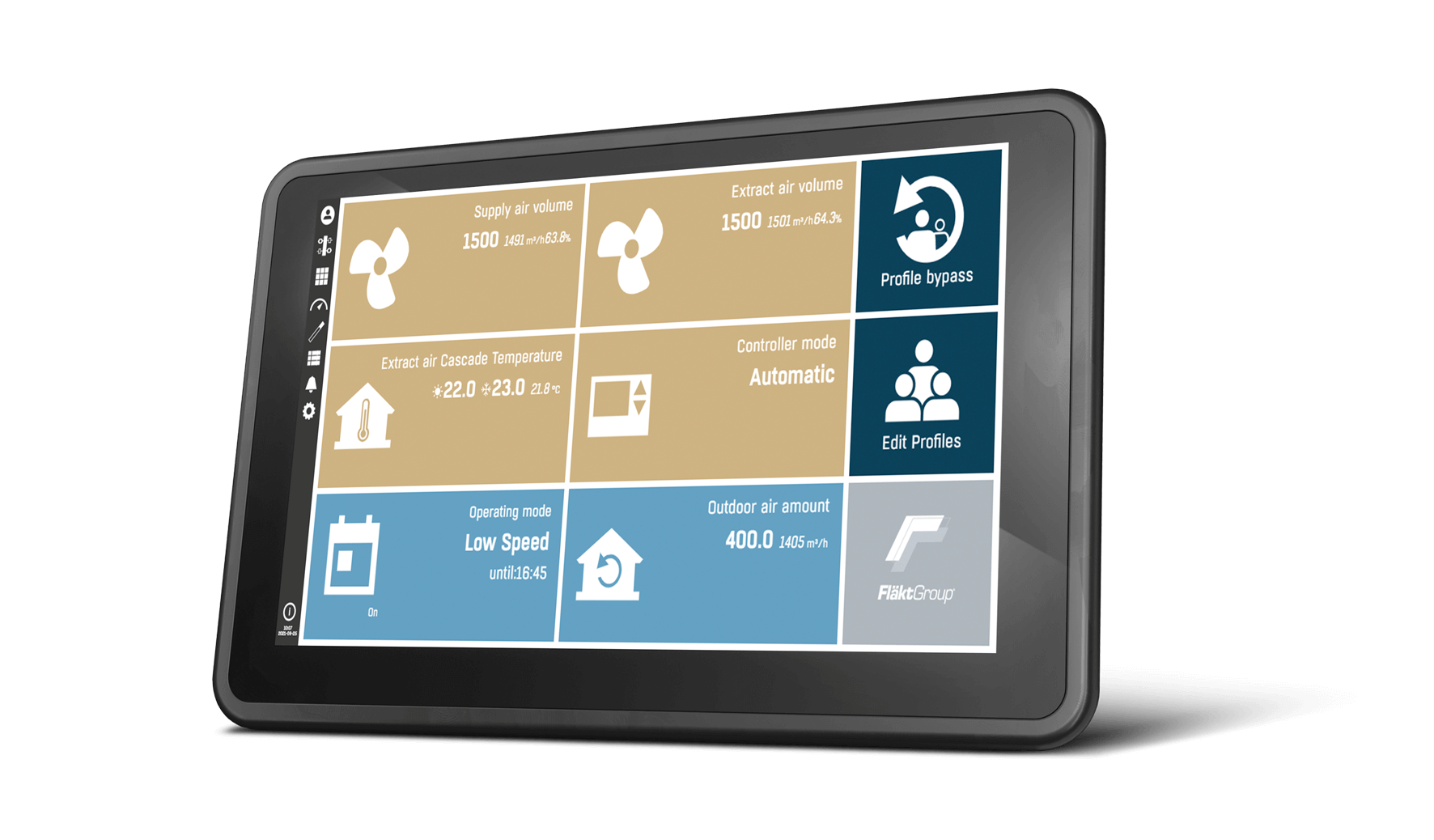

ISYteq 4.0

Powerful integrated controls with smart cloud connectivity

ISYteq 4.0 is designed from the ground up to be easy to install, commission, connect, use and maintain. Our platform contains smart control functions that bring out the best in FläktGroup’s eQ Prime S/T Air Handling Units. All the funtionality needed to provide high comfort and good indoor air quality in combination with energy savings is included in ISYteq 4.0.


This contributes to a continous optimisation of the total cost of ownership, which is helped even further by reduced downtime and servicing costs of your installation.

Advanced functions: Improved efficiency & climate

AUTOMATIC PRESSURE BALANCING

By carefully balancing the air pressure in an Air Handling Unit with Heat Recovery Wheel we can eliminate leakage between Extract and Supply air and thereby minimising the risk of recirculating airborne particles.

ENHANCED ENERGY MONITORING

ISYteq 4.0 allows you to monitor energy usage on component level to give you easy access to all the data needed to reduce running cost, identify areas for future performance related maintenance, set alarms for abnormal events and much more.

SORPTION WHEEL WITH ENTHALPY RECOVERY

With a Sorption Wheel we can remove external moisture and reduce the latent load on the cooling coil. This gives reduced running cost and better indoor air comfort with minimal extra investment.

3-STAGE FROST PROTECTION

Our AFP (Advanced Frost Protection) system for the Counterflow Plate Heat Exchanger is designed to operate in three stages to ensure optimal functionality in all climates.



  1. By-pass damper (> -16 °C)
  2. Advanced frost protection (> -22 °C)
  3. Advanced frost protection + pre-heater (< -22 °C)
