South West Data Centre, UK
The customer built a new Data Centre for South West Data Centre inside the existing Data Centre taking up a quarter of the space.
Customer: South West Data Centre
Need: An energy efficient Data Centre with the lowest possible PUE.
Solution: Partnering with South West Data Centre we have fitted our Ultra Energy Efficient DMF065D freecool units to give HLMR the best energy efficient product on the market.
Name of building: South West Data Centre
Country: England, Plymouth, South West Data Centre
Number of units:
- New Data Centre 3 x DMF065D units with HCD 75-E hybrid condenser / drycoolers
- UPS Room 2 x DMX010U units with DMOUUD100E condensing units
Unit testing on 02.04.19 by DNB
Using 8 No Heatbanks a 90kW room design load was introduced.
Each of the 3 No DMF065D units run in freecooling mode with no DX.
The outside ambient was 9.8°C.
The input power to each unit was 2.5kW with a total of 7.5kW input for 3 units.
EER = 90 / 7.5 EER = 12.00
PUE = 90 + 7.5 + 3.6 (UPS losses at 4%) PUE = 1.12 Cooling PUE = 1.08
Existing D63 Combicool units running on CW as the primary.
Chiller COP estimated @ 3.0
D63 units running @ 6.0kW fan gain each.
Running 3 units at a 90kW load
Chiller load 30kW
3 x D63 fan gain 18kW
Total input power 48kW
EER = 90 / 48 EER = 1.875
PUE = 90 + 48 + 3.6 (UPS losses at 4%) PUE = 1.57 Cooling PUE 1.53
At this point in time the saving over the existing system for a 90kW load would be
48kW – 7.5kW = 40.5kW.
Annual saving = 40.5kW x 8760 hrs x £0.12kW/hr = £42,574.
ROI 1 Year 6 Months
Unit 3 was switched off.
The remaining 2 No DMF065D units then run in freecooling mode & partial DX mode.
The outside ambient was now 10.8°C.
The input power to each unit was 7.1kW with a total of 14.2kW input.
EER = 90 / 14.2 EER = 6.34
PUE = 90 + 14.2 + 3.6 (UPS losses at 4%) PUE = 1.20 Cooling PUE = 1.16

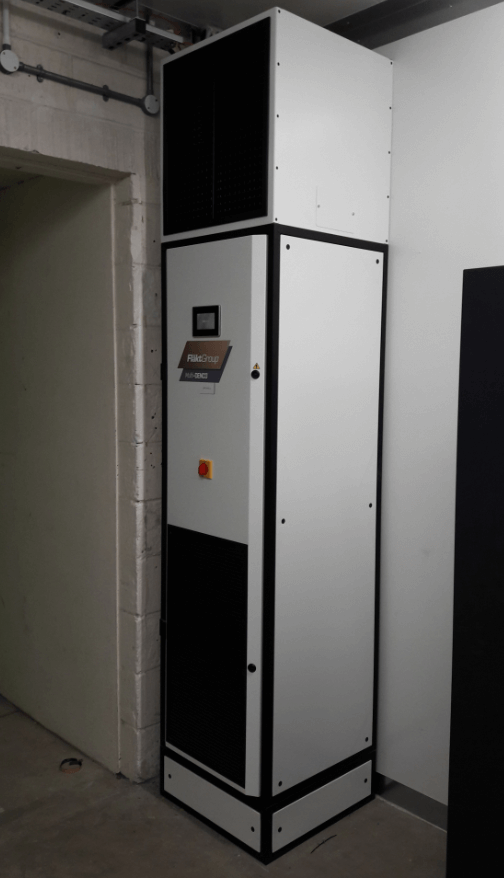

DMX010U unit in UPS room.

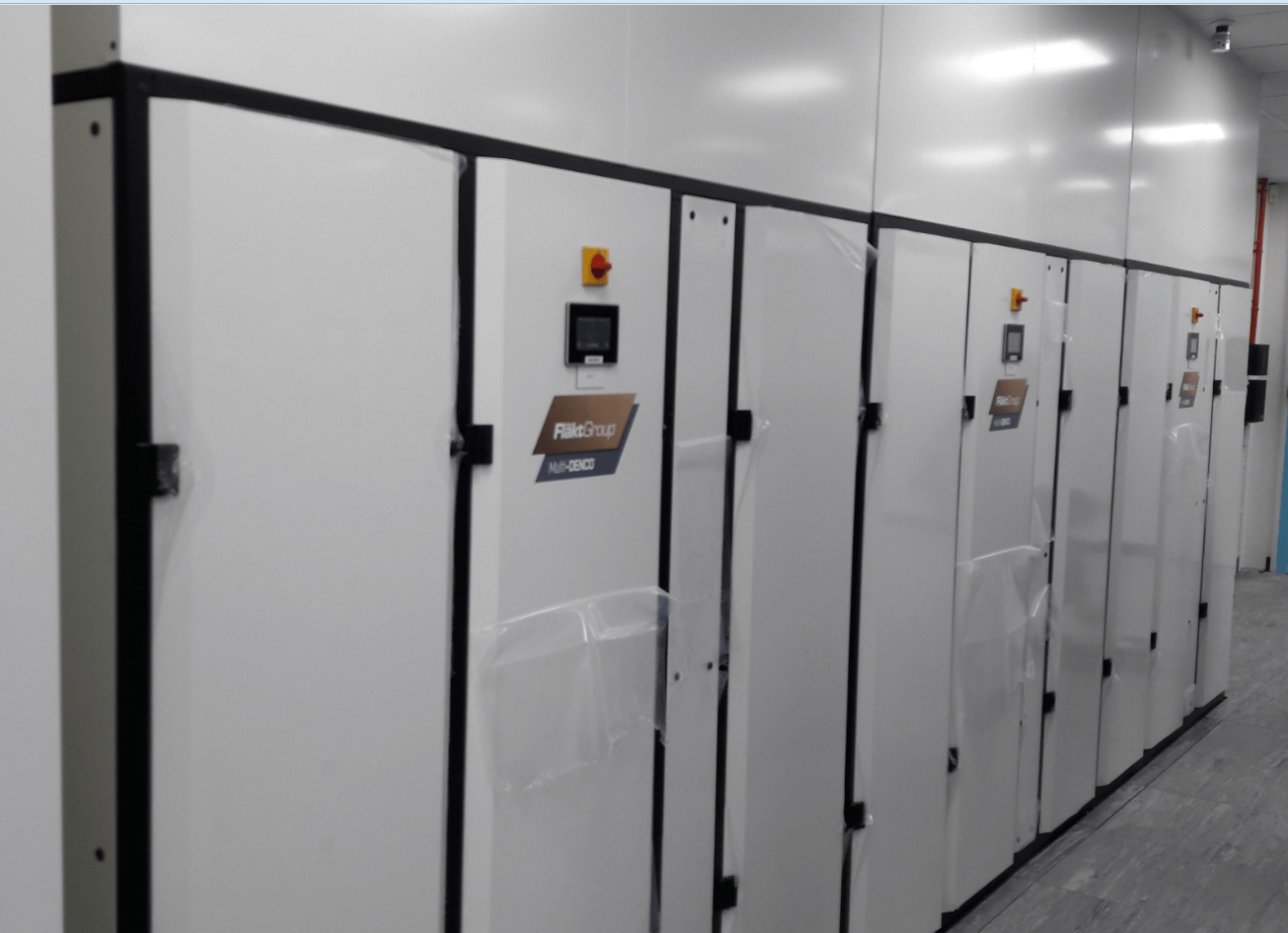

3 x DMF065D units with 1000mm top sections. Air return is from the hot aisle via the ceiling void.

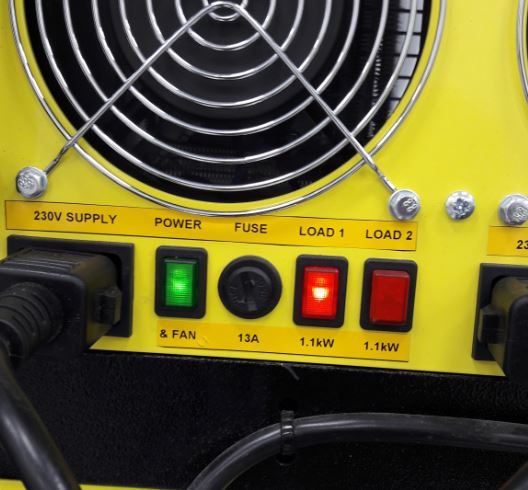

8 No Heatbanks giving 90kW room load

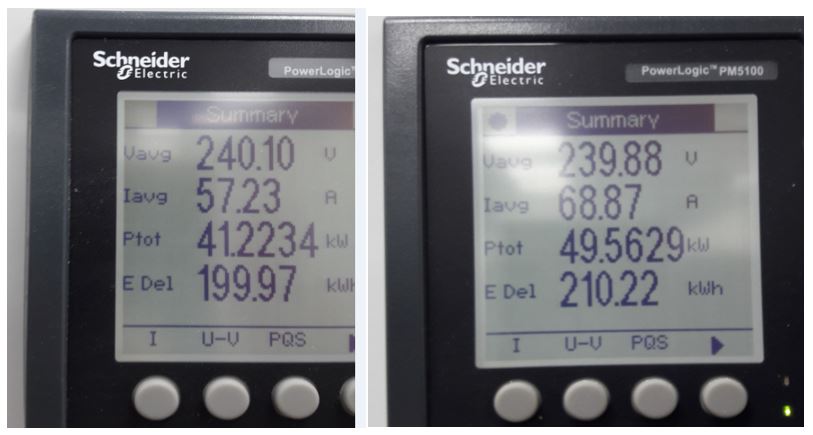

PDU’s showing power drawn by heatbanks. 41.2kW + 49.5kW = 90.7kW

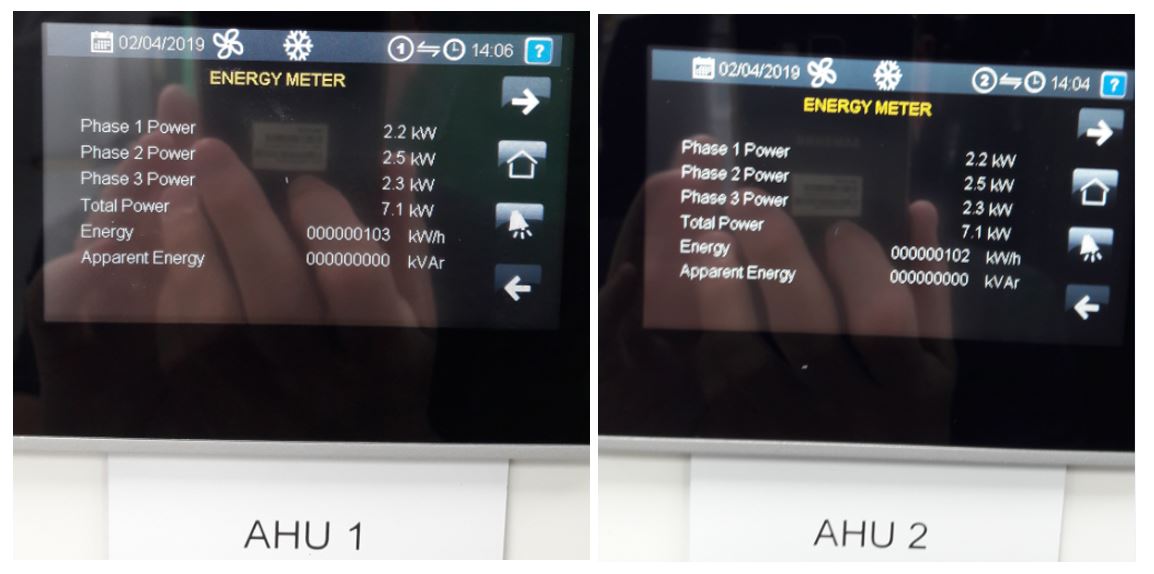

Energy meter reading from 2 x DMF065D units in partial Freecool / DX cooling.

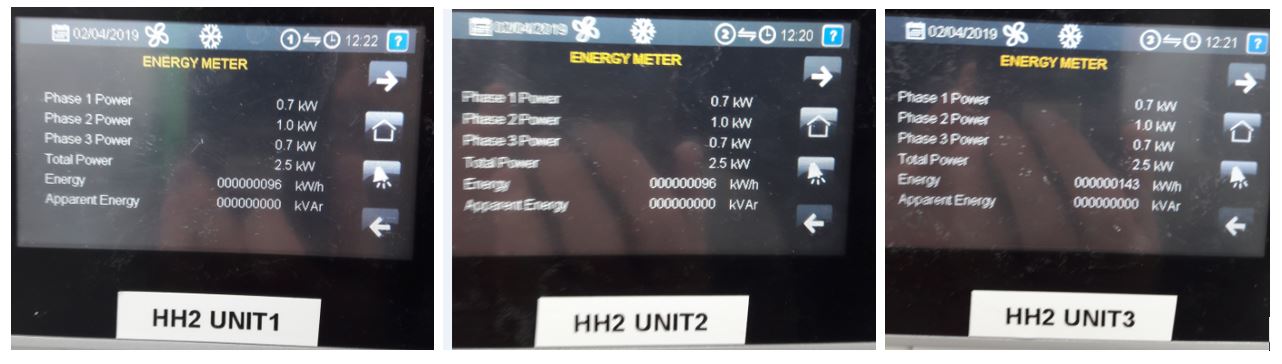

Energy meter reading from 3 x DMF065D units in Freecooling.
