Get to know WOODS
The Woods brand is recognised globally in a variety of markets from building ventilation and fire safety to bespoke industrial projects.
As part of FläktGroup, Woods continues to invest in research and development and manufacturing capability to be at the forefront of the air movement industry.
Our historyCentre of Excellence
Our Capabilities
At Woods we research, design and produce products and systems that create value for our customers though the best combination of technical performance, quality and reliability.

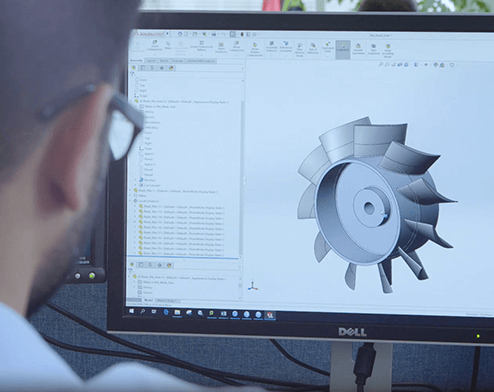

Engineering
Woods' world class engineering team is based in the Centre of Excellence in the UK. We use a variety of advanced simulation tools to optimise product designs for aero performance, efficiency and sound levels to ensure we provide the best solutions to any project.

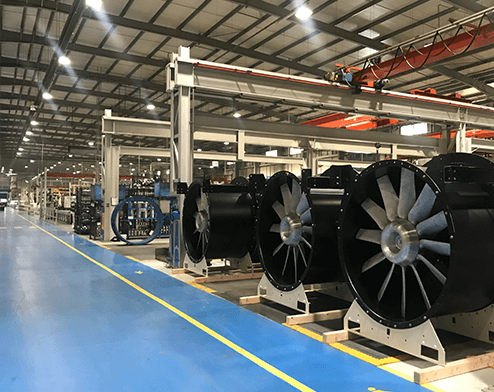

Manufacturing
Woods' UK factory boasts 16,500sqm floor space and produces more than 82,000 fans annualy for a global market. We can produce fans up to 3.55m in diameter, utilising our in-house equipment including an x-ray machine, laser cutter and paintshop, providing the best quality, reliability and customisation to meet your requirements.

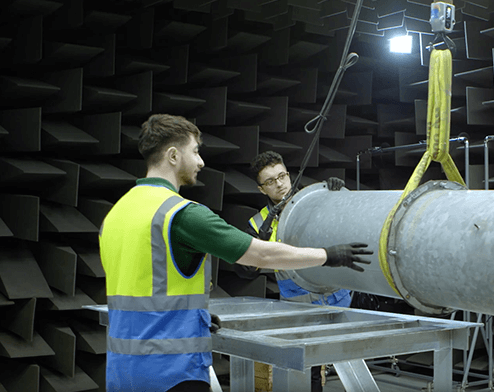

Testing
Once a concept is theoretically proven in the design stage, fans can be built and then tested in our state of the art laboratory. We can test aerodynamic efficiencies and acoustic levels; both induct and in our brand-new semi-anechoic chamber, as well as testing how our high-temperature fans perform in temperatures up to 400°C.
At the Centre of Excellence based in the UK, FlaktGroup have a world class Design and CFD team, supported by local specialists.
The Design team are focused on delivering the optimum design tailored to local regulatory requirements, optimising air quality, fire safety, installed cost and full life cycle costs.
We design smoke clearance, smoke control, temperature control and pollution control systems, using the latest techniques.
For Consultants
-
Preserve the integrity of the architects design
-
Reduce project costs by optimising the system design
-
Reduce energy consumption in ventilation mode
For Contractors
- Lower installation costs
- Simplify installation
- Optimise other project costs: excavation, smoke shaft size, switchgear
For Building Owners/Operators
- Protect life & property
- Reduce energy consumption
- Increase lettable space
For Occupants
- Increased fire safety
- Lower noise levels
AVAILABLE TODAY
Products
-
JMv® AEROFOIL AXIAL FLOW FAN
- Innovative CFD optimized design. Improved aerodynamic efficiency
- High efficiency design delivers lower running costs: Down by 27%
- Fully cased design – quick, simple and cost effective installation
-
JM AEROFOIL AXIAL FLOW FAN
- High Efficiency impeller design reduces SFP values and running costs
- Adjustable pitch impeller delivers precise performance
- Short or Long cased options provide installation flexibility
-
JM PLATEMOUNTED FAN
- Low pressure levels
- High air volume
- Mounting and connection flexibility
-
EC Climafan®
- Suitable for chillers, condensers, heat exchangers, agriculture and cooling towers as well as all other plate mounted applications
- Standard and bespoke plate sizes and finishes available
- Integrated variable speed drive with 0-10V and 4-20mA analogue control inputs
- Modbus compatible interface with dedicated Fläkt Woods EC Control software
-
JM BIFURCATED 200°C AXIAL FLOW FAN
- Motor mounted outside the air stream
- Suitable for continuous operation for temperatures from 100°C to 200°C
- Adjustable pitch impeller delivers precise performance
-
HT JM AEROFOIL AXIAL FLOW FAN
- High Efficiency impeller design reduces SFP values and running costs
- Adjustable pitch impeller delivers precise performance
- Short or Long cased options provide installation flexibility
-
JTv SLIM-LINE JET THRUST FAN
- Aesthetically pleasing design includes integral mounting bracket for easy installation
- JTv product offers improved uni-directional thrust development
- JTv range also offers a “Max Thrust” version to further improve thrust development
-
JTv LOW PROFILE JET THRUST FAN
- Features space saving casing and integral mounting bracket for easy installation
- JTv product offers improved uni-directional thrust development
- JTv range also offers a “Max Thrust” version to further improve thrust development
JTv Jet Thrust Range
- Available in 315, 355, 400mm diameter
- Utilises the successful aerodynamic hub design of the JMv
- Increased Thrust means fewer fans are required, saving on installation costs
- Simple installation
- Low noise emittance
The JTv Low Profile Car Park Jet Thrust Fan range offers a uni-directional offering, with a low profile, space saving casing and an integrated mounting bracket, which means installation is particularly simple.
