In an age of climate-conscious design and rising energy costs, efficiency in HVAC systems has never been more urgent.

Why Efficiency in AHU Design matters
Efficiency in air handling systems may feel like a modern concern, but it can actually be traced as far back as the early 19th century, to the industrial revolution. This was a time where maximising airflow while minimising the use of coal was the biggest challenge. What has changed since then is the scale of buildings, the sophistication of systems, and the urgency of climate change. Optimal efficiency in AHU design is not simply just about saving money; it is about meeting global sustainability goals and regulatory standards. This includes the integration of energy recovery components to capture and reuse waste energy within a ventilation system.
On the 1st January 2016 the European Union introduced the first European wide regulation [1] to improve the energy efficiency of, amongst other equipment, air handling units. It was tightened in 2018, and a draft has now been published and is likely to become law in 2026. The regulation established minimum heat recovery efficiencies (in 2016 67% for rotary and plate heat exchangers, 63% for run around coils. The 2018 figures were 73% and 68% respectively). These mandated figures reflect a growing emphasis on energy recovery as a cornerstone of efficient AHU design.
The proposed amendment to the regulation [2] recognizes that in warmer climates a minimum heat recovery of 73% was counter-productive and proposes a heat recovery efficiency linked to the winter external design temperature. For example, in Italy a heat recovery of 73% means that there is no heating coil load when the external temperature >-4°c (assuming various other design parameters). Since heat recovery system (HRS) pressure drop is linked to efficiency, too high heat recovery efficiency results in increased fan electrical consumption. Moreover, electrical power is more carbon emission intensive than hot and cold water generated by air or ground source heat pumps.
Furthermore, ever-evolving regulatory requirements highlight the increasing complexity of AHU design – where compliance must be balanced with practical energy performance. For consultants, this means that a one-size-fits-all approach to specifying heat recovery efficiency is no longer the correct solution. Instead, performance must be evaluated in the context of the given project. That includes climate zone, building type, system design, and energy source, which all impact AHU efficiency choices. To navigate through this level of complexity AHU manufacturers need robust, transparent tools that can model energy use and carbon impact under real world operating conditions. An effective energy recovery strategy must consider all these project variables to avoid overdesign and wasted energy.
David Black - Sales Solution Developer in Product Marketing
David discusses the real-world challenges of achieving net zero in building ventilation. While air handling units (AHUs) inherently consume power, there’s a clear opportunity to optimise system design to significantly reduce energy use and carbon emissions. Highlighting how regulations like EcoDesign are evolving to account for regional climate differences — and why designing only to meet the minimum standard could lead to unnecessary energy waste. Learn why a tailored, climate-appropriate approach leads to better performance, lower power consumption, and a more meaningful contribution to sustainability goals.
Cue our Life Cycle Cost programme
FläktGroup’s Life Cycle Cost (LCC) programme can calculate kWh of power consumption, running costs and associated CO2 emissions of any AHU configured in our selection software. We can also use it to understand what the optimal heat recovery efficiency is. The performance data within that programme is audited by Eurovent. Carbon intensity of the electrical generation [3] and cost [4] have been taken from independent free access sources. This comprehensive analysis ensures that energy recovery performance is accurately factored into lifecycle assessments. See references.
Carbon Trust publication UK
The basis for this approach originates from a publication by the Carbon Trust in the UK [5], which evaluated heat recovery system (HRS) performance under UK fan coil system design conditions. It demonstrated that an HRS with 80% thermal efficiency was able to recover 100% of the energy available for recovery – achieving what the report defined as an Annual Energy Efficiency (AEE) of 100%. In other words, under typical UK conditions, an 80% efficient heat exchanger captures all the practically recoverable energy from the exhaust air. It highlights how well-calibrated energy recovery can capture all useful thermal energy in a real-world application.
Pursuing higher HRS efficiency beyond this point can be counterproductive. While the thermal recovery might increase, the associated higher pressure drops leading to increased fan consumption, which outweighs any marginal gains in heat recovery. Therefore, for typical UK climates and systems, an 80% efficient HRS represents the optimal balance between energy recovered and additional system energy use.
Confirming the Carbon trust analysis

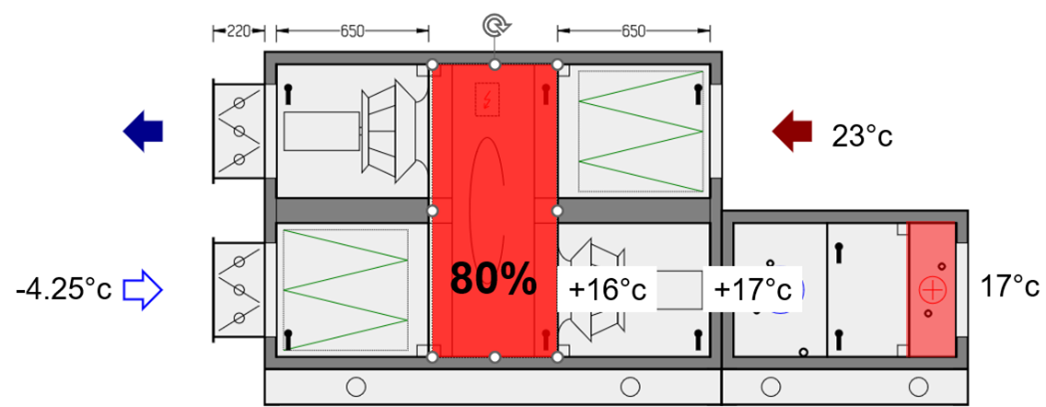

Assuming a supply temperature of 17°c, an extract temperature of 23°c and heat pick up of 1°c from the fan result is a heating coil load of zero. This should result in a heating coil dimensioned with an acceptable safety margin but of reduced capacity. A smaller heating coil will have less air pressure drop and deliver lower specific fan power. When properly implemented, energy recovery systems reduce the load on heating coils and therefore improve overall efficiency.
Having confirmed the basic principle demonstrated by the Carbon Trust – that an 80% efficient heat recovery system (HRS) can recover 100% of the energy that is available to be recovered under UK design conditions – we can begin to define what “optimal efficiency” in AHU design mean. However, it’s important to understand that the goal is not to reach 100% device efficiency, but instead to achieve the best overall system performance for the specific project.
To configure an AHU for optimal energy performance, several factors must be carefully evaluated:
- Geographic location, as outdoor air temperatures and humidity levels vary across regions.
- System design, since different ventilation strategies (e.g., displacement ventilation vs. fan coil units) require different supply air temperatures and airflow rates.
- Local energy costs and the carbon intensity of the electrical grid, which affect both the economic and environmental impact of running the system.
It's also essential to distinguish between the efficiency of the heat recovery device itself and the Annual Energy Efficiency (AEE) of the AHU. The Carbon Trust example illustrates that, in a well-designed system, an 80% efficient heat recovery unit can achieve an AEE of 100% — meaning it captures all the energy that can practically be recovered under typical conditions. Attempting to push beyond this by using a higher-efficiency device may increase pressure drops, which in turn raises fan energy consumption and can lead to diminishing or even negative returns in overall system efficiency.
LCC Analysis for AHU Performance and Efficiency
For consultants tasked with specifying AHUs that balance energy performance, carbon targets, and lifecycle cost, data driven tools are essential. LCC analysis helps by simulating real-world performance based on project-specific factors such as climate conditions, air temperatures, operational schedules, and local energy costs. The charts below illustrate typical LCC inputs and outputs, helping consultants validate design choices with clear metrics for energy demand, cost, and CO2 impact. Energy recovery modelling plays a vital role in these simulations, influencing both environmental and financial outcomes.

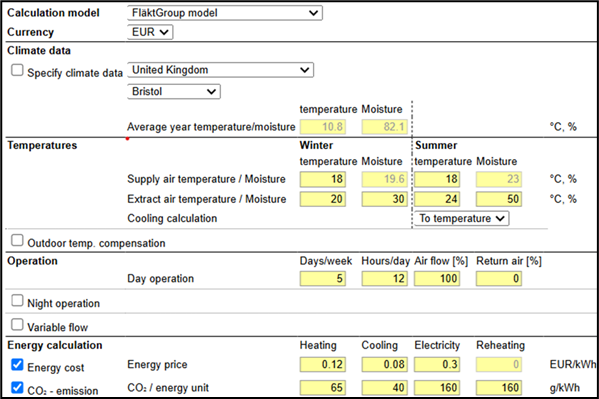

Chart 1: Input Configuration – LCC Setup Parameters
This form captures all the critical project-specific inputs – including climate zone, air temperatures, operating hours, and local energy costs – that form the basis of AHU performance simulation. It then produces comprehensive data as shown in the diagram below, demonstrating that energy recovery efficiency must align with local climate and system design to be effective.

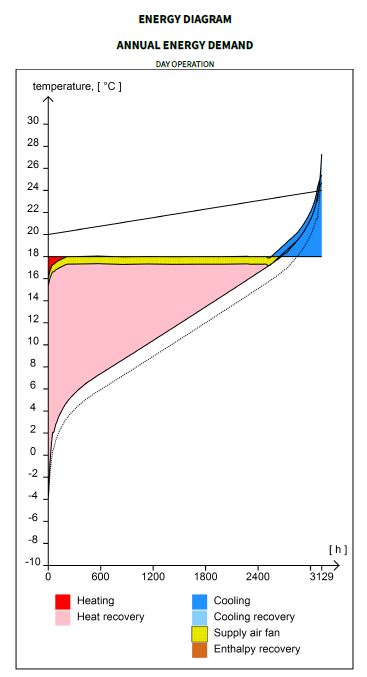

Chart 2: Energy Diagram – Annual Energy Demand Profile
This graph visually displays the AHU’s annual thermal performance, breaking down heating, cooling, and heat recovery demands over the course of a year.
Chart 3: Energy Calculation – AHU Performance Summary
This output sheet summarises the simulated AHU’s energy efficiency, fan power, and annual operating costs, enabling direct comparison of energy use and CO2 emissions across system components.

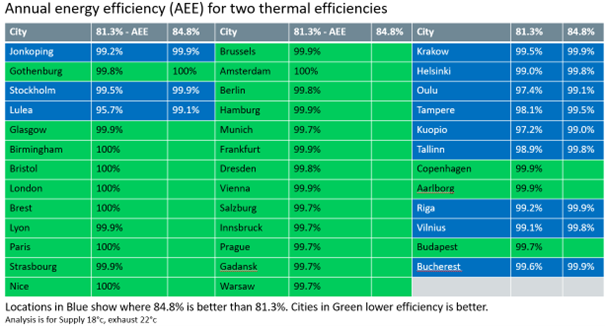

Using these tools we have analysed many locations in Europe and compared two energy efficiencies. A comparison table is shown below but this is for one set of supply and extract conditions. As these criteria change from project to project and location, the best solution should always be evaluated to minimise energy consumption.
This chart shows that for all locations highlighted in green it is better to have an 81% heat recovery than 85%. The colder the city, the higher the heat recovery efficiency should be.
Other design considerations
Cooling recovery should be considered when configuring AHU cooling coils. However, too high efficiency increases pressure drop – which increases fan power – while only marginally improved cooling. Typically (per m³s) a cooling recovery of 85% reduces the cooling coil air pressure drop by <5 pa. compared to a cooling recovery figure of 80% whilst increasing the HRS air pressure drop by 80 pa. Optimising energy recovery for both heating and cooling requires careful balancing to avoid inefficiencies.
Fans in AHUs are typically dimensioned to minimise specific fan power (SFP) at the maximum design airflow. SFP is a key efficiency metric, defined as the amount of electrical power (in kW) required to move a unit volume of air (in m³s). Lower SFP means higher fan efficiency and reduced energy consumption.
In VAV applications the greater the airflow turndown the more the fan moves away from the point of maximum efficiency. Fig 5. Below shows the impact on AHU SFP at full, 75% and 50% airflow.

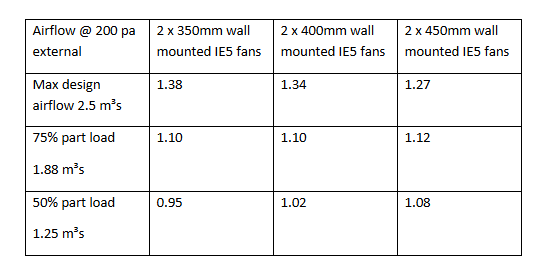

Table: AHU SFP for VAV applications
This table shows the SFP values for an AHU in a VAV system under different fan configurations and airflow conditions. For a unit normally running at 50% of the maximum design airflow a reduction of 25% in running costs is achievable with the correctly dimensioned fans. These also have a lower purchase cost.
Conclusions
Proper sizing of heat recovery, heating, and cooling coils is key to lowering AHU carbon emissions and cutting operating costs for building owners. Integrating energy recovery into these design choices helps unlock further savings and emission reductions.
For VAV systems, carefully considering anticipated actual operating airflows rather than maximum airflows can further improve energy efficiency.
Given the almost infinite number of possible AHU requirements, it is extremely difficult for designers to make informed decisions on the best solution for both the client and the environment. Responsible AHU manufacturers should be able to advise designers on the optimal answer to their problem. The best way to prove this is by utilizing a well-designed LCC programme which provides data for kWh of power consumption, running costs and associated carbon emissions. This ultimately ensures energy recovery strategies are grounded in real-world data.
What exactly is Optimal Efficiency?
There is no simple answer to this question because true optimal efficiency depends on many different factors as discussed. It all depends on the specific needs of a building and its system, which is going to vary. However, the underlying principle is clear, optimal efficiency means achieving the lowest energy use and carbon emissions for the required performance. It means sizing coils correctly, configuring the design for realistic airflow rates, and selecting the correct equipment based on operating conditions.
Consultants need to consider this challenge when selecting a responsible AHU manufacturer. By partnering with FläktGroup we utilize robust Life Cycle Cost (LCC) analysis tools that can make decisions based on real data. That includes energy use (kWh), running costs, and associated carbon emissions across a system’s lifespan.
Whenever you are selecting or specifying AHUs, it is always good practice to insist on a full LCC analysis early in the design process. This ensures you aren’t just meeting today’s project goals – you’re also safeguarding the building’s operational future, cutting long-term costs, and helping achieve sustainability targets. Energy recovery, when used intelligently, becomes central to delivering these long-term performance outcomes.
