Clean Rooms & Medical device manufacturing
The creation of medical devices requires a totally clean and germ-free indoor space.
Medical device manufacturing
Medical devices are used for “working” on human body’s – therefore they must be sterile. Production of these devices is undertaken within a controlled environment.
Clean air in this environment is a must, and there must be a controlled level of airborne particles without and leakages of undesirable substances or aerosoles.
We offer efficient heat-recovery systems and reliable filter systems with low pressure drop assure considerable energy savings. We deliver turnkey solutions on a one-stop shopping basis: beginning with building elements such as ceiling grid modules, filter and panel ceilings, laminar-flow ceilings, clean room walls, wall paneling, windows and doors – including development and installation of your clean room facilities – and extending to after-sales service.
Clean Room Technology by FläktGroup
Numerous international manufacturers work with FläktGroup‘s Clean Room Technology as a result of our expertise in developing reliable and effective contamination control methods for Clean Rooms.
Clean Room solutions from FläktGroup permit users to coordinate all critical parameters precisely with the requirements of respective production processes and to systematically control decontamination of room air. These solutions control air pressure, temperature, and moisture – especially the contamination with fine dust, skin particles and bacteria – and keep these contaminants away from products and processes.
Effective and precise clean rooms design is essential for semiconductor production and pharmaceutical industries, as well as companies in the chemical industry, space technology, and optics and laser technology perform research and production; where we see that conditions in these industries are increasingly relying upon Clean Room conditions.
Technical, chemical, and biological quality products with highly sensitive manufacturing processes are further processed in hermetically sealed areas that demand room air that is virtually dust-free. The manufacturing process itself, however, requires ambient air absolutely free of particulates.
USE OUR SELECTION TOOLS
CONTACT OUR SALES TEAM
VIEW OUR REFERENCES
Products
-
EHSD CIRCULAR FLOW VARIATOR
- Easy and Quick Selection
- Insulated casing
- Integrated orifice plate for air measurement
- FW compact controller as standard
-
CAIRplus AIR HANDLING UNIT
- CAIRplus is the tailor-made premium range of modular air handling units for every customer requirement
- Environmentally-friendly design means an energy recovery system with high efficiency is available for every configuration
- Clean surfaces and ease of cleaning guarantee hygienic standards to VDI6022
- All units can be supplied with FläktGroup integrated controls ISYteq 4.0
- T2/TB2/L1/D1 Eurovent certified casing
-
Fresh Heaven MAXX LAMINAR AIRFLOW UNIT
- Full-area filtration
- Easy installation, maintenance and disinfection
- Low initial pressure drop of HEPA filters
- Air recirculated via economical EC motors
-
Fresh Breeze – FAN FILTER UNIT
- Full filtration
- Energy efficiency is ensured through EC fans
- Own production of HEPA and ULPA filters to perfectly match unit design
- Low initial pressure drop of filters
-
AIR SHOWER
- Decontamination is performed by clearing off dust and dirt particles from bodies of cleanroom personnel
- Maximum efficiency through a high-velocity turbulent jet of clean air of 25 m/s
- Cleaning cylce with pressure control, door blocking and user control settings
- Filtration using a pre-filter and HEPA filter
-
-
GLFC 2150-2600 DA2 (286 - 1212 kW)
- Version with 2 screw compressors
- SEPR-HT values up to 6.3
- ErP 2021 compliant with EU 2016/2281
- Available as Standard or Super-Low noise (SL) versions
-
CGx Ceiling Air Outlet HEPA FILTER DIFFUSORS
- For turbulent displacement flow
- Suitable for all types of suspended ceilings produced for clean rooms
- Vertical or horizontal inlet with a possible filter integration
- Round or rectangular duct connection
-

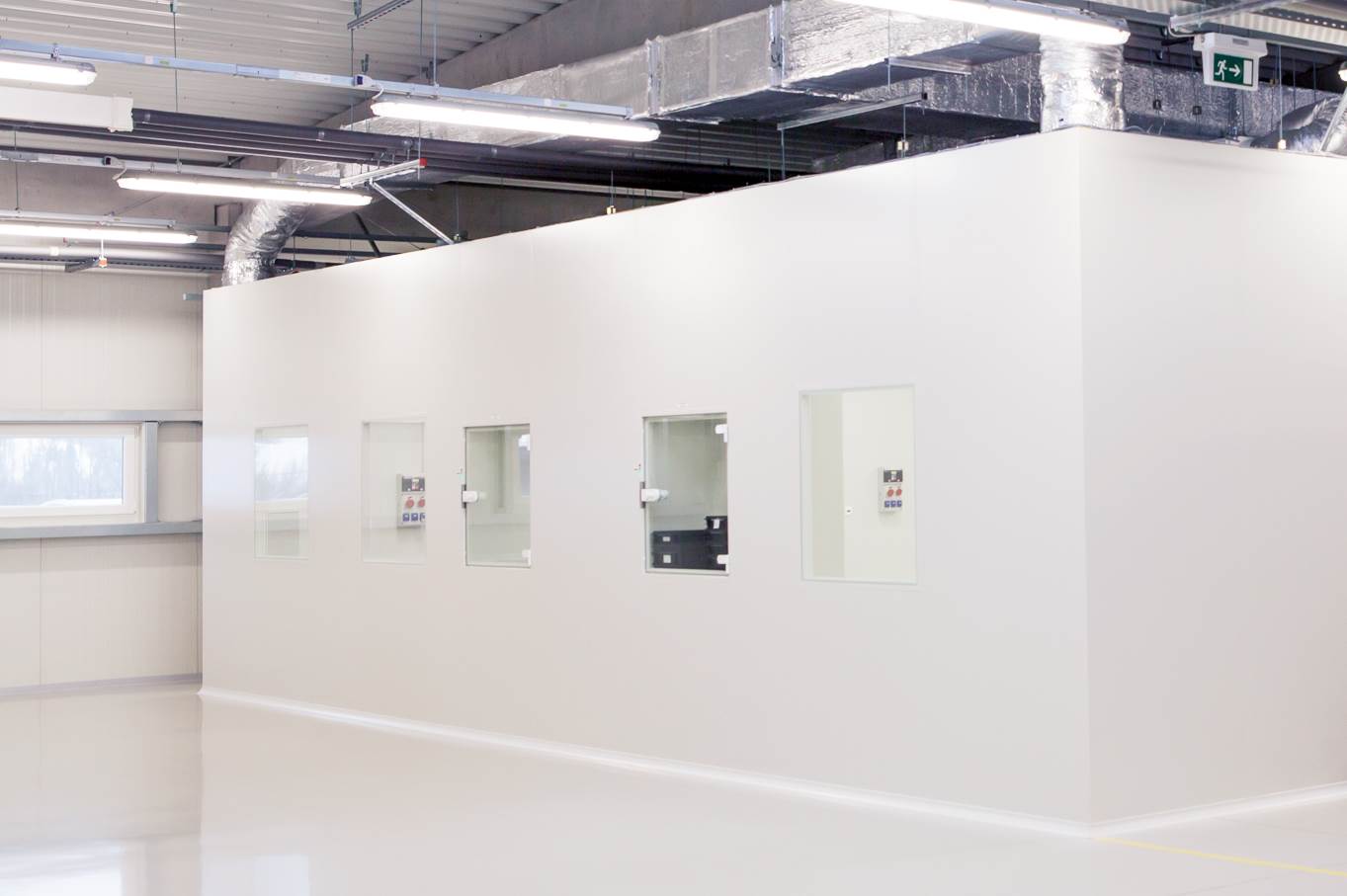

SANDWICH PANELS
- Painted or stainless steel sheet facing, custom design colours, various cores with no release of particles
- Matching flush glazed glass panels for non-opening windows and each panel type with rounded connections to floor and ceiling
- Easy maintenance, effective sanitation and resistance to disinfectants
- Guaranteed resistance to positive pressure of 200Pa, also for negative pressure applications and all classes of clean rooms
-
Inwall FACINGS
- Inwall Click facings for clean rooms focus on minimizing the number of joints
- Panels maintain the rigidity and acoustic qualities within a clean room
- Easy and quick fixation to structural walls or construction by means of click profiles
-
In combination with other systems (e.g. gypsum partition walls) Inwall Click facing meet increased fire resistance or sound insulation requirements
-
DOORS & WINDOWS
- Air tightness guarantees pressure stability
- Flush with wall partitions and facings which ensures easy maintenance and flawless sanitation
- Control system with signalling and interlocks enables customized access to and from different clean-room areas
- Flexibility through doors on hinges and sliding doors, including automatic function
- Single and double leaf models, pass-through boxes and optional X-ray protection
-
EXHAUST-AIR COMPONENTS
- Reliable ventilation of anaesthetic gases, particles and exhaust of room air burdened with microbes
- Various choices of extract-air components
- Seamless integration of extract-air components in all types of wall panels and facings
-
CEILINGS
-
A minimum number of particles is released from the panel surface
-
Ease of installation, cleaning and sanitation, resistance to conventional disinfectants
-
Joints between panels are sealed using permanently elastic sealant
-
-
eQ MASTER® AIR HANDLING UNIT
- Tailor made for customer needs
- Energy Efficient and optimized with integrated control
- Large variety of high efficiency components
