Guide to Car Park Ventilation. Part Two.

A Ductless Jet Thrust System is an attractive alternative to the traditional ducted system, both because it removes the need for costly and space-consuming ducting, but also because it can precisely direct supply air towards each extract point, providing a good level of ventilation throughout the car park.

This is achieved by using strategically-placed arrays of compact Jet Thrust Fans, with supply air being delivered via vehicle ramps, fresh air openings (grilles) or by using mechanical means such as Supply Air Fans.

A significant advantage of Ductless systems can be found in their operational efficiency. Because they don’t have the high resistance ductwork, extract fans require a lower kW rating than in Ducted systems, which can substantially reduce running costs.

Both Ducted and Ductless systems require extract fans, which are often mounted on the roof of the car park and are the main means of satisfying the design air change rate.

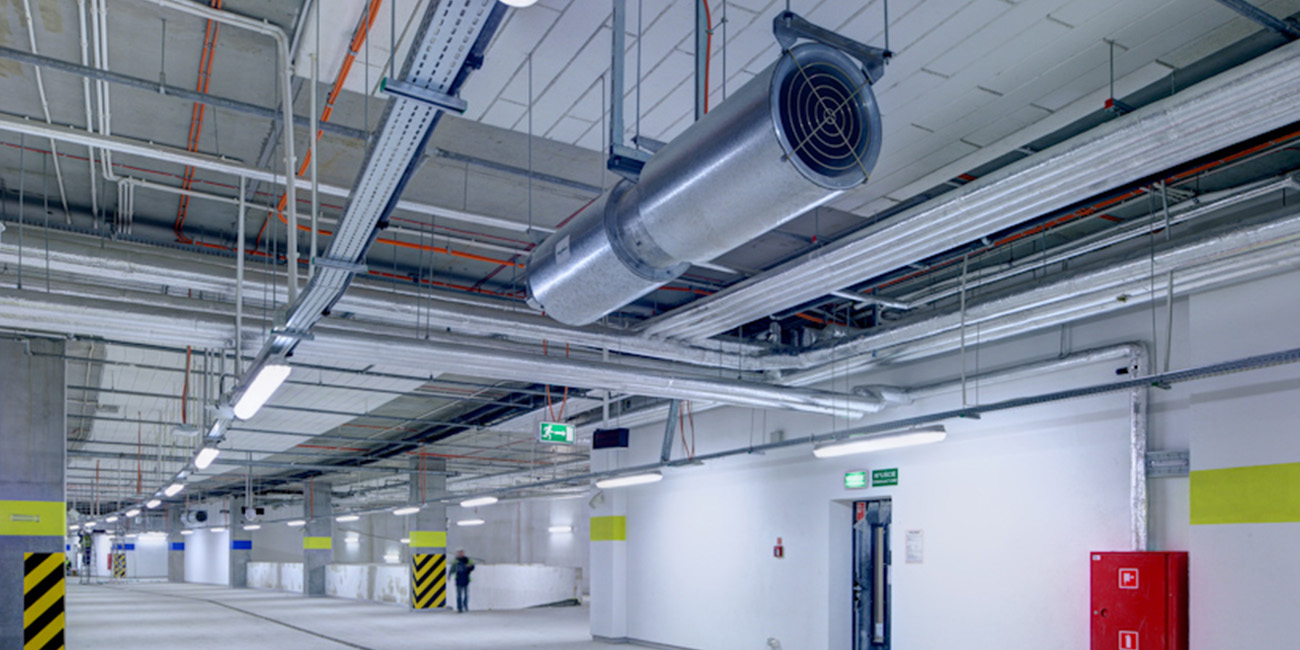

Jet Fans are small and can be attached directly to the ceiling slab, or suspended from the ceiling, depending on factors such as other services in the car park and required vehicle clearance heights. Because they have very low rotating masses compared to the ceiling slab to which they are attached, there is no need for vibration isolation, so they use less of the space in the services zone of the car park.

When installing Jet Thrust Fans, sufficient clear room needs to be allowed around the fan so that it can develop its flow profile and achieve the rated performance. Intelligent positioning during the design stage will ensure that no significant obstructions are within 500mm of the fan inlet and within ten fan diameters (generally three to four metres) from the discharge. For reversible systems, both ends of the fan should be regarded as discharge when making these calculations.

The Jet Thrust Fan throws air in a long jet, moving air at both high level where the Jet Fan is mounted, and at lower levels by means of entrainment of air, as illustrated in Figure 1.

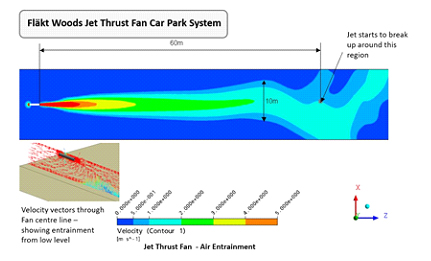

Figure 1: Air throw from roof-mounted Jet Thrust Fan

Figure 2 demonstrates how air movement is achieved at both high and low level by Jet Fans in a typical car park. Airflow travels in from the openings on the left, and travels through the car park to the Extract Fans on the right, with the airflow splitting as it travels around the central space.

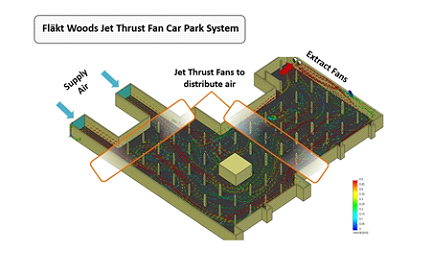

Figure 2: Air flow using Jet Thrust Fans in a typical car park

The blade design of the Jet Fans is an important consideration. Using vortex control technology (such as in the Fläkt Woods VCC blade) enables enhanced fan performance without increasing the motor selections, which in turn leads to greater efficiency and reduced running costs.

Equally important is the ability to make the fans truly reversible (we will look at why this is important in the next Ten Minute Read, when we look at smoke control). Achieving 100% thrust performance in both forwards and reverse operation requires truly symmetrical blades, a feature which is unique to Woods Air Movement fan systems.

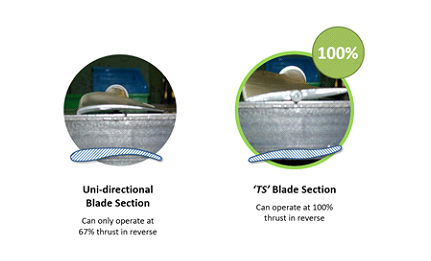

Figure 3 shows the difference in the cross-section of a uni-directional blade, which will only deliver 67% thrust when run in reverse, and a truly symmetrical blade, which will deliver 100% thrust in both directions.
